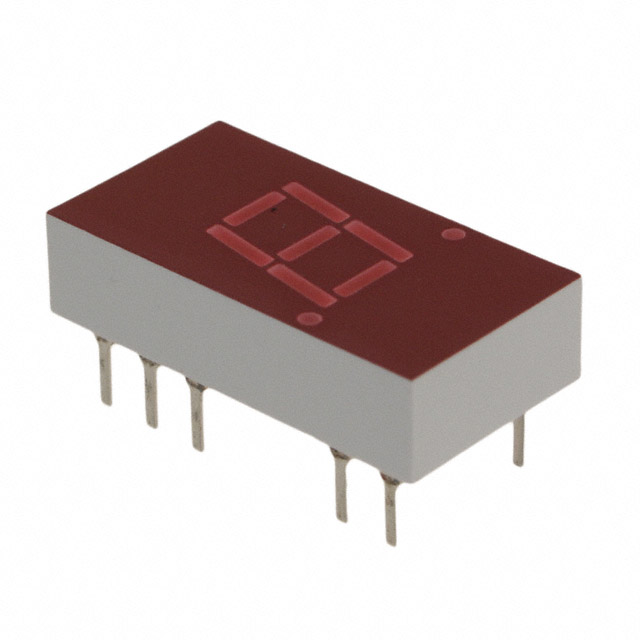

| Part Number | 5082-7611 |
|---|
| Manufacturer | Avago Technologies US Inc. |
|---|
| Description | LED 7-SEG 7.6MM CA HE RED RHD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Optoelectronics |
|---|
| Series | - |
|---|
| Family | Display Modules - LED Character and Numeric |
|---|
| PCN Design/Specification |
Alternate Scrambler/Painter 12/Nov/2014
|
|---|
| Standard Package | 200 |
|---|
| Number of Characters | 1 |
|---|
| Size / Dimension | 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) |
|---|
| Digit/Alpha Size | 0.30" (7.62mm) |
|---|
| Display Type | 7-Segment |
|---|
| Common Pin | Common Anode |
|---|
| Color | Red |
|---|
| Voltage - Forward (Vf) (Typ) | 2.1V |
|---|
| Current - Test | 20mA |
|---|
| Millicandela Rating | 0.8mcd |
|---|
| Wavelength - Peak | 635nm |
|---|
| Power Dissipation (Max) | 105mW |
|---|
| Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads |
|---|
| Online Catalog | 5082 and HDSP Series |
|---|
| Other Names | 50827611516-1187-5 |
|---|
