| Part Number | 74LVC4245ADB,118 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | IC TRANSCVR TRI-ST DL 24SSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LVC |
|---|
| Family | Logic - Translators, Level Shifters |
|---|
| Product Training Modules |
Logic Packages
|
|---|
| PCN Assembly/Origin |
ICN6 to ICN8 Transfer 13/Jul/2013
|
|---|
| PCN Packaging |
Date Code Extended 18/Jul/2013
Lighter Packing Reels 30/Mar/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Translator Type | Voltage Level |
|---|
| Channel Type | Bidirectional |
|---|
| Number of Circuits | 1 |
|---|
| Channels per Circuit | 8 |
|---|
| Voltage - VCCA | 1.5 V ~ 5.5 V |
|---|
| Voltage - VCCB | 1.5 V ~ 3.6 V |
|---|
| Input Signal | - |
|---|
| Output Signal | - |
|---|
| Output Type | Tri-State, Non-Inverted |
|---|
| Data Rate | - |
|---|
| Operating Temperature | -40°C ~ 125°C (TA) |
|---|
| Features | - |
|---|
| Mounting Type | Surface Mount |
|---|

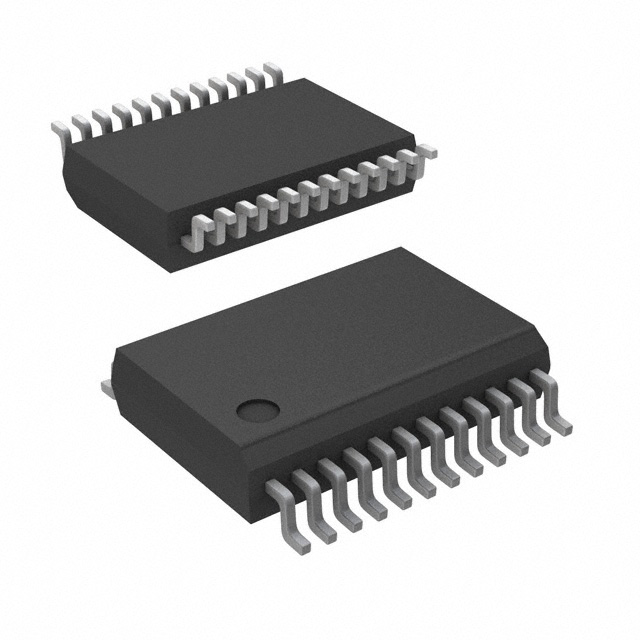

| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
|---|
| Supplier Device Package | 24-SSOP |
|---|
| Online Catalog | 74LVC |
|---|
| Other Names | 568-9990-6 |
|---|
