| Part Number | PCA9306GM,125 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | IC LEVEL TRANSLATOR 8-XQFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Logic - Translators, Level Shifters |
|---|
| Product Training Modules |
Logic Packages
I²C Bus Fundamentals
|
|---|
| Featured Product |
NXP - I2C Interface
|
|---|
| PCN Packaging |
Date Code Extended 18/Jul/2013
Leadframe Material Update 20/Mar/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Translator Type | Voltage Level |
|---|
| Channel Type | Bidirectional |
|---|
| Number of Circuits | 1 |
|---|
| Channels per Circuit | 2 |
|---|
| Voltage - VCCA | 1 V ~ 3.6 V |
|---|
| Voltage - VCCB | 1.8 V ~ 5.5 V |
|---|
| Input Signal | - |
|---|
| Output Signal | - |
|---|
| Output Type | Open Drain |
|---|
| Data Rate | - |
|---|
| Operating Temperature | -40°C ~ 85°C (TA) |
|---|
| Features | Auto-Direction Sensing |
|---|
| Mounting Type | Surface Mount |
|---|

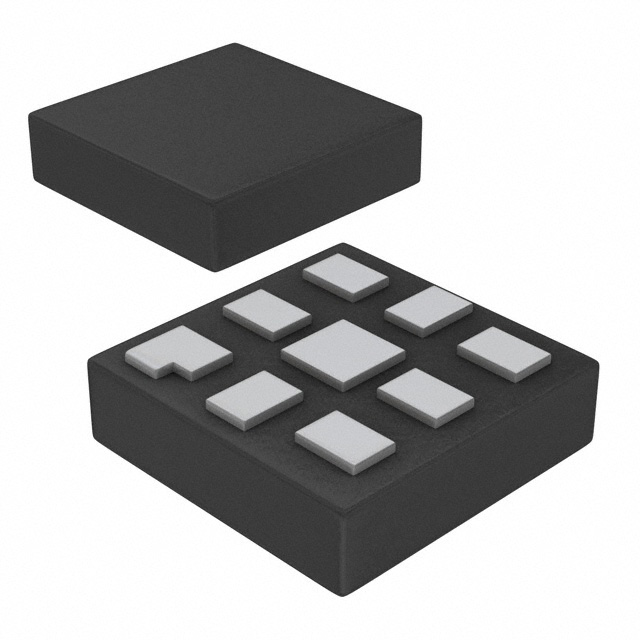

| Package / Case | 8-XFQFN Exposed Pad |
|---|
| Supplier Device Package | 8-XQFN (1.6x1.6) |
|---|
| Online Catalog | PCA9306 |
|---|
| For Use With | 1568-1006-ND - PCA9306 LOGIC LEVEL TRANSLATOR |
|---|
| Other Names | 568-4187-6 |
|---|
