| Part Number | SN74F253D |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC DUAL 1-OF-4 SEL/MUX 16-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1,132 |
| Datasheet | SN74F253D |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
SN74F253D
-
- USD 0.88
Product Details
| Part Number | SN74F253D |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC DUAL 1-OF-4 SEL/MUX 16-SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Integrated Circuits (ICs) |
| Series | 74F |
| Family | Logic - Signal Switches, Multiplexers, Decoders |
| Standard Package | 40 |
| Packaging | Tube |
| Type | Multiplexer |
| Circuit | 2 x 4:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 3mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |

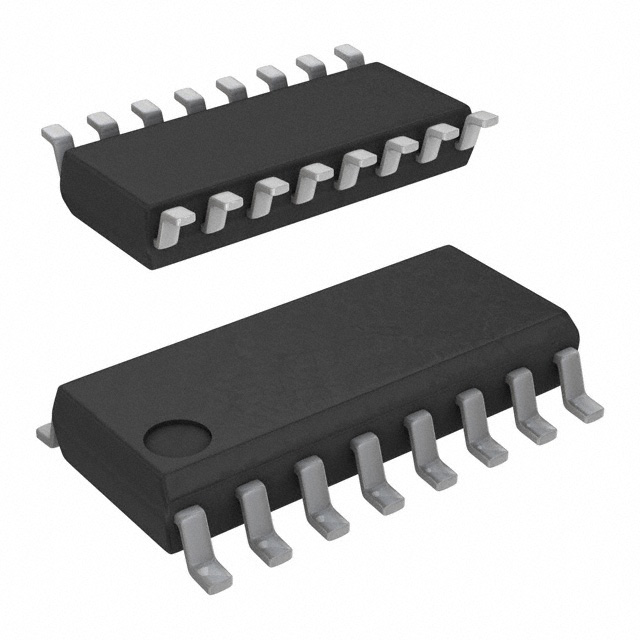

| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC N |
| Online Catalog | 74F |
| Other Names | 296-3573-5SN74F253DE4SN74F253DE4-NDSN74F253DG4SN74F253DG4-ND |
