| Part Number | 74LVC1G86SE-7 |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | IC GATE XOR 1CH 2-INP SOT-353 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LVC |
|---|
| Family | Logic - Gates and Inverters |
|---|
| Featured Product |
Low Voltage CMOS 74LVCxx
74LVC1G and 74AUP1G Families
|
|---|
| PCN Design/Specification |
Copper Wire/Die Shrink 15/Jul/2013
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Logic Type | XOR (Exclusive OR) |
|---|
| Number of Circuits | 1 |
|---|
| Number of Inputs | 2 |
|---|
| Features | - |
|---|
| Voltage - Supply | 1.65 V ~ 5.5 V |
|---|
| Current - Quiescent (Max) | 200μA |
|---|
| Current - Output High, Low | 32mA, 32mA |
|---|
| Logic Level - Low | 0.7 V ~ 0.8 V |
|---|
| Logic Level - High | 1.7 V ~ 2 V |
|---|
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

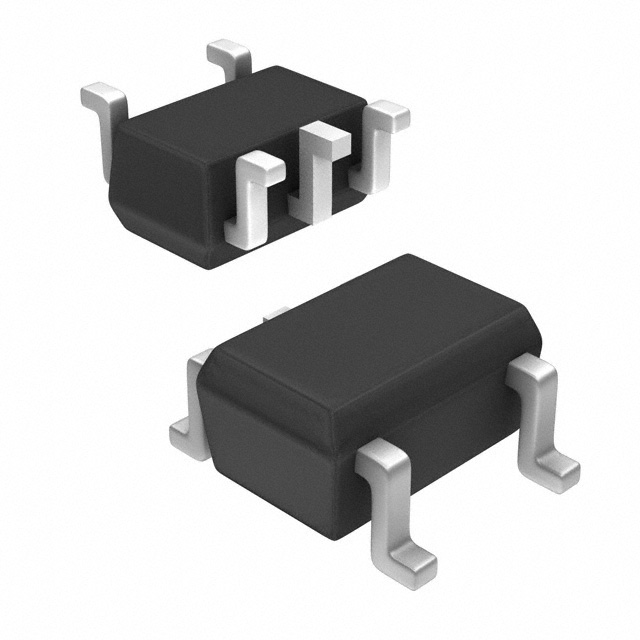

| Supplier Device Package | SOT-353 |
|---|
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
|---|
| Online Catalog | 74LVC |
|---|
| Other Names | 74LVC1G86SE-7DIDKR |
|---|
