| Part Number | 74HC08T14-13 |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | IC GATE AND 4CH 2-INP 14-TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74HC |
|---|
| Family | Logic - Gates and Inverters |
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Logic Type | AND Gate |
|---|
| Number of Circuits | 4 |
|---|
| Number of Inputs | 2 |
|---|
| Features | Schmitt Trigger |
|---|
| Voltage - Supply | 2 V ~ 6 V |
|---|
| Current - Quiescent (Max) | 20μA |
|---|
| Current - Output High, Low | 5.2mA, 5.2mA |
|---|
| Logic Level - Low | 0.5 V ~ 1.8 V |
|---|
| Logic Level - High | 1.5 V ~ 4.2 V |
|---|
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

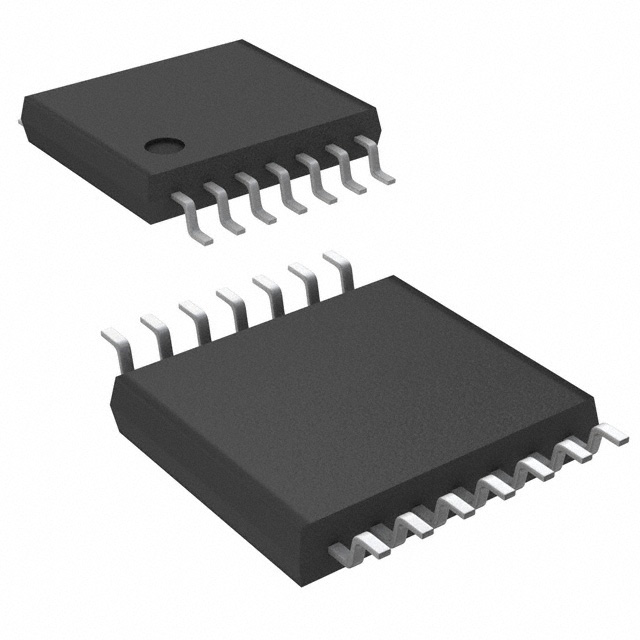

| Supplier Device Package | 14-TSSOP |
|---|
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
|---|
| Online Catalog | 74HC |
|---|
| Other Names | 74HC08T14-13DI74HC08T14-13DI-ND74HC08T14-13DITR |
|---|
