| Part Number | SN74LVC1G11DSFR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC GATE AND 1CH 3-INP 6-SON |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LVC |
|---|
| Family | Logic - Gates and Inverters |
|---|
| PCN Assembly/Origin |
CFAB and Miho 8 Additional Fab Site 08/Nov/2013
Assembly/Test Site Addition 16/Jul/2014
Assembly/Test Site Revision A 17/Oct/2014
|
|---|
| Standard Package | 5,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Logic Type | AND Gate |
|---|
| Number of Circuits | 1 |
|---|
| Number of Inputs | 3 |
|---|
| Features | - |
|---|
| Voltage - Supply | 1.65 V ~ 5.5 V |
|---|
| Current - Quiescent (Max) | 10μA |
|---|
| Current - Output High, Low | 32mA, 32mA |
|---|
| Logic Level - Low | 0.7 V ~ 0.8 V |
|---|
| Logic Level - High | 1.7 V ~ 2 V |
|---|
| Max Propagation Delay @ V, Max CL | 3.5ns @ 5V, 50pF |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

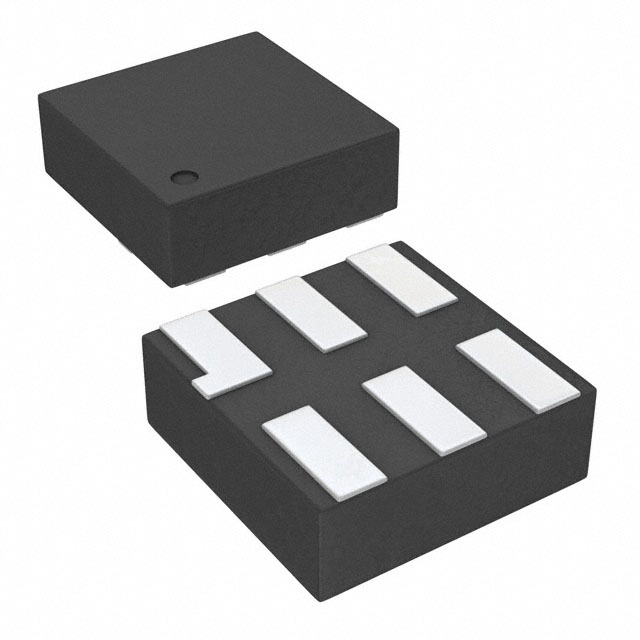

| Supplier Device Package | 6-SON (1x1) |
|---|
| Package / Case | 6-XFDFN |
|---|
| Online Catalog | 74LVC |
|---|
| Other Names | 296-30121-2 |
|---|
