| Part Number | 74LVC86AD,118 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | IC GATE XOR 4CH 2-INP 14-SO |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LVC |
|---|
| Family | Logic - Gates and Inverters |
|---|
| Product Training Modules |
Logic Packages
|
|---|
| PCN Assembly/Origin |
ICN6 to ICN8 Transfer 13/Jul/2013
|
|---|
| PCN Packaging |
Date Code Extended 18/Jul/2013
Lighter Packing Reels 30/Mar/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Logic Type | XOR (Exclusive OR) |
|---|
| Number of Circuits | 4 |
|---|
| Number of Inputs | 2 |
|---|
| Features | - |
|---|
| Voltage - Supply | 1.2 V ~ 3.6 V |
|---|
| Current - Quiescent (Max) | 40μA |
|---|
| Current - Output High, Low | 24mA, 24mA |
|---|
| Logic Level - Low | 0.7 V ~ 0.8 V |
|---|
| Logic Level - High | 1.7 V ~ 2 V |
|---|
| Max Propagation Delay @ V, Max CL | 2.2ns @ 3.3V, 50pF |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

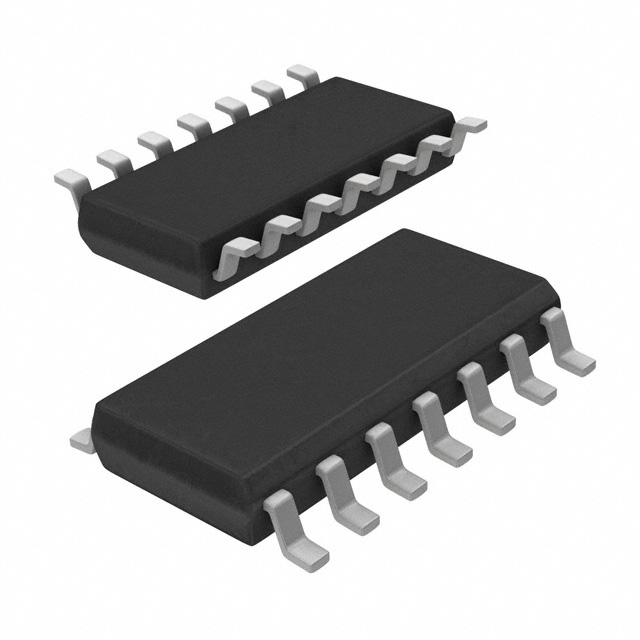

| Supplier Device Package | 14-SO |
|---|
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
|---|
| Online Catalog | 74LVC |
|---|
| Other Names | 568-2307-1 |
|---|
