| Part Number | NC7SZ08P5 |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | IC GATE AND 1CH 2-INP SC-70-5 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 7SZ |
|---|
| Family | Logic - Gates and Inverters |
|---|
| PCN Design/Specification |
Mold Compound 12/Dec/2007
|
|---|
| PCN Packaging |
Binary Year Code Marking 15/Jan/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Logic Type | AND Gate |
|---|
| Number of Circuits | 1 |
|---|
| Number of Inputs | 2 |
|---|
| Features | - |
|---|
| Voltage - Supply | 1.65 V ~ 5.5 V |
|---|
| Current - Quiescent (Max) | 2μA |
|---|
| Current - Output High, Low | 32mA, 32mA |
|---|
| Logic Level - Low | - |
|---|
| Logic Level - High | - |
|---|
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | SC-70-5 |
|---|

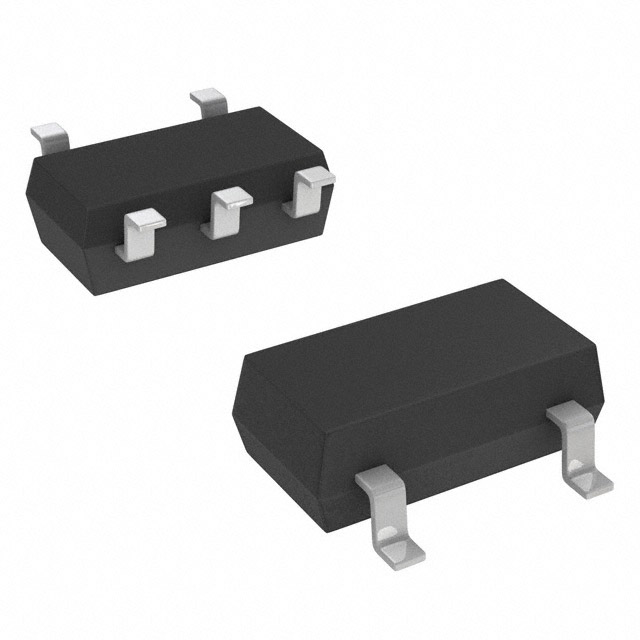

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
|---|
| Online Catalog | 7SZ |
|---|
| Other Names | NC7SZ08P5CT |
|---|
