| Part Number | SN74LV1T08DCKR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC GATE AND 1CH 2-INP SC-70-5 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LV |
|---|
| Family | Logic - Gates and Inverters |
|---|
| Manufacturer Product Page |
SN74LV1T08DCKR Specifications
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Logic Type | AND Gate |
|---|
| Number of Circuits | 1 |
|---|
| Number of Inputs | 2 |
|---|
| Features | - |
|---|
| Voltage - Supply | 1.6 V ~ 5.5 V |
|---|
| Current - Quiescent (Max) | 1μA |
|---|
| Current - Output High, Low | 8mA, 8mA |
|---|
| Logic Level - Low | 0.58 V ~ 0.8 V |
|---|
| Logic Level - High | 0.94 V ~ 2.1 V |
|---|
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 30pF |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

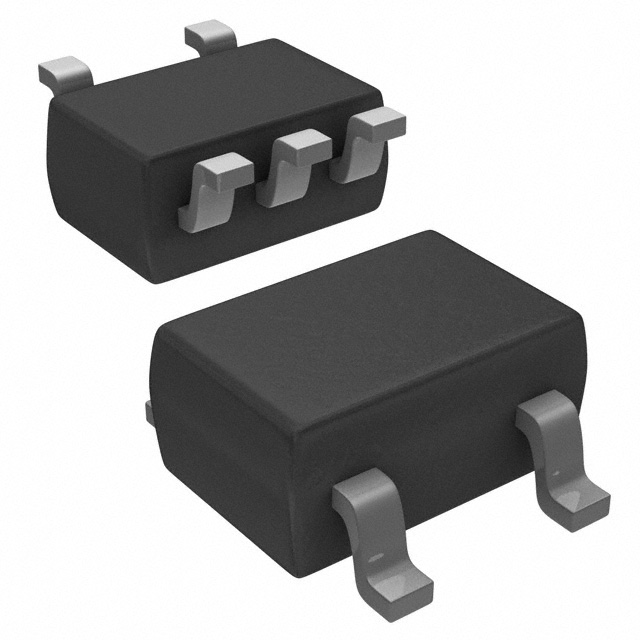

| Supplier Device Package | SC-70-5 |
|---|
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
|---|
| Online Catalog | 74LV |
|---|
| Other Names | 296-39211-6 |
|---|
