| Part Number | MC74VHC1G00DTT1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | IC GATE NAND 1CH 2-INP 5-TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14,762 - Immediate33,000 - Factory Stock |
| Datasheet | MC74VHC1G00DTT1G |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
MC74VHC1G00DTT1G
-
- USD 0.00
Product Details
| Part Number | MC74VHC1G00DTT1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | IC GATE NAND 1CH 2-INP 5-TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Integrated Circuits (ICs) |
| Series | 74VHC |
| Family | Logic - Gates and Inverters |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2 V ~ 5.5 V |
| Current - Quiescent (Max) | 1μA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSOP |

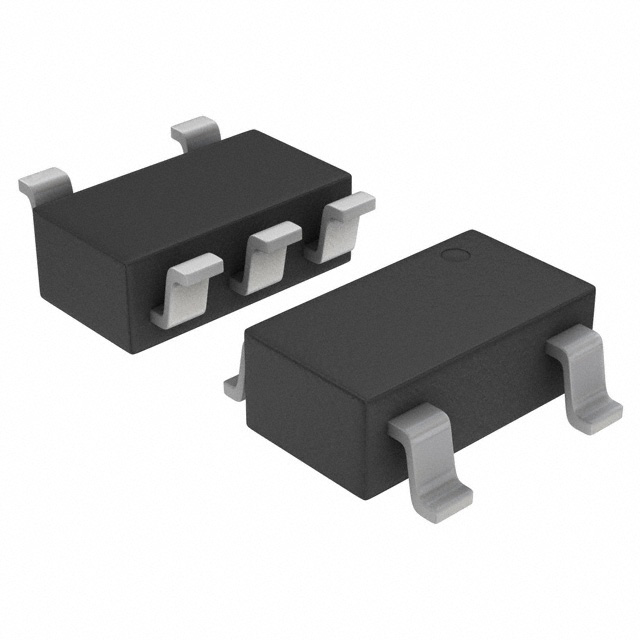

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Online Catalog | 74VHC |
| Other Names | MC74VHC1G00DTT1GOSCT |
