| Part Number | SN74LVT574PWR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC D-TYPE POS TRG SNGL 20TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74LVT |
|---|
| Family | Logic - Flip Flops |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Function | Standard |
|---|
| Type | D-Type |
|---|
| Output Type | Tri-State, Non-Inverted |
|---|
| Number of Elements | 1 |
|---|
| Number of Bits per Element | 8 |
|---|
| Frequency - Clock | 150MHz |
|---|
| Max Propagation Delay @ V, Max CL | 6.6ns @ 3.3V, 50pF |
|---|
| Trigger Type | Positive Edge |
|---|
| Current - Output High, Low | 32mA, 64mA |
|---|
| Voltage - Supply | 2.7 V ~ 3.6 V |
|---|
| Current - Quiescent | 190μA |
|---|
| Input Capacitance | 4pF |
|---|
| Operating Temperature | -40°C ~ 85°C (TA) |
|---|
| Mounting Type | Surface Mount |
|---|

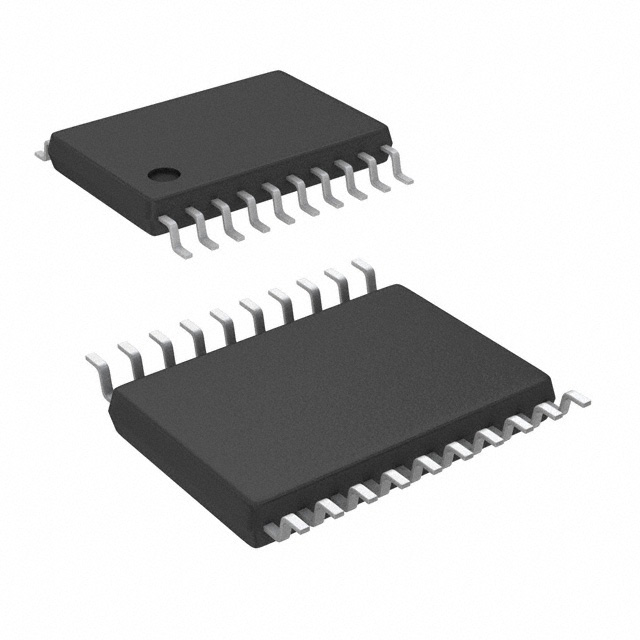

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
|---|
| Other Names | 296-1257-6 |
|---|
