| Part Number | LM339MX |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC COMPARATOR QUAD LO PWR 14SOIC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Linear - Comparators |
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | General Purpose |
|---|
| Number of Elements | 4 |
|---|
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
|---|
| Voltage - Supply, Single/Dual (±) | 2 V ~ 36 V, ±1 V ~ 18 V |
|---|
| Voltage - Input Offset (Max) | 5mV @ 30V |
|---|
| Current - Input Bias (Max) | 0.25μA @ 5V |
|---|
| Current - Output (Typ) | 16mA @ 5V |
|---|
| Current - Quiescent (Max) | 2.5mA |
|---|
| CMRR, PSRR (Typ) | - |
|---|
| Propagation Delay (Max) | - |
|---|
| Hysteresis | - |
|---|
| Operating Temperature | 0°C ~ 70°C |
|---|

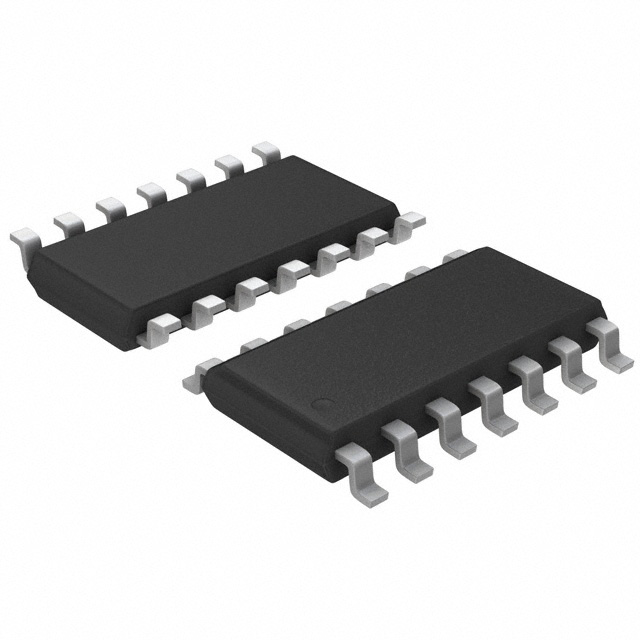

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | 14-SOICN |
|---|
| Online Catalog | Comparators - 4+ elements |
|---|
| Other Names | LM339MXTR |
|---|
