| Part Number | LM393DGKR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC DUAL DIFF COMPARATOR 8VSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Linear - Comparators |
|---|
| Design Resources |
Create your power design now with TI’s WEBENCH? Designer
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | Differential |
|---|
| Number of Elements | 2 |
|---|
| Output Type | CMOS, MOS, Open-Collector, TTL |
|---|
| Voltage - Supply, Single/Dual (±) | 2 V ~ 36 V, ±1 V ~ 18 V |
|---|
| Voltage - Input Offset (Max) | 5mV @ 30V |
|---|
| Current - Input Bias (Max) | 0.25μA @ 5V |
|---|
| Current - Output (Typ) | 20mA |
|---|
| Current - Quiescent (Max) | 2.5mA |
|---|
| CMRR, PSRR (Typ) | - |
|---|
| Propagation Delay (Max) | - |
|---|
| Hysteresis | - |
|---|
| Operating Temperature | 0°C ~ 70°C |
|---|

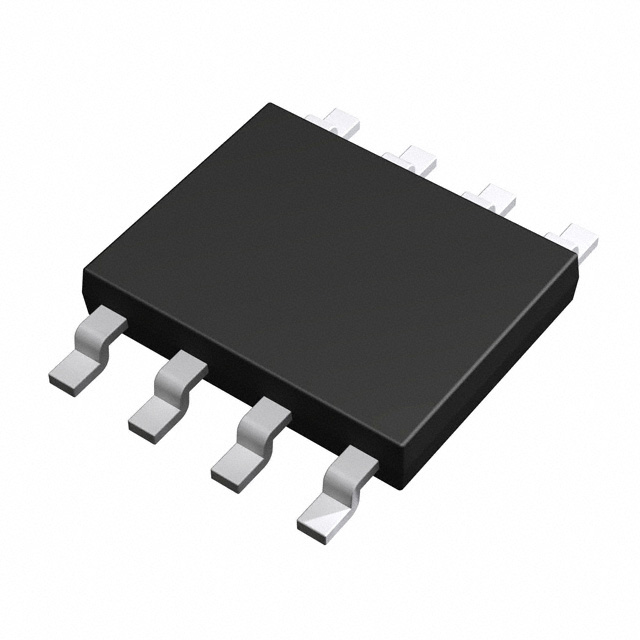

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | 8-VSSOP |
|---|
| Online Catalog | Comparators - 2 elements |
|---|
| Other Names | 296-16808-1 |
|---|
