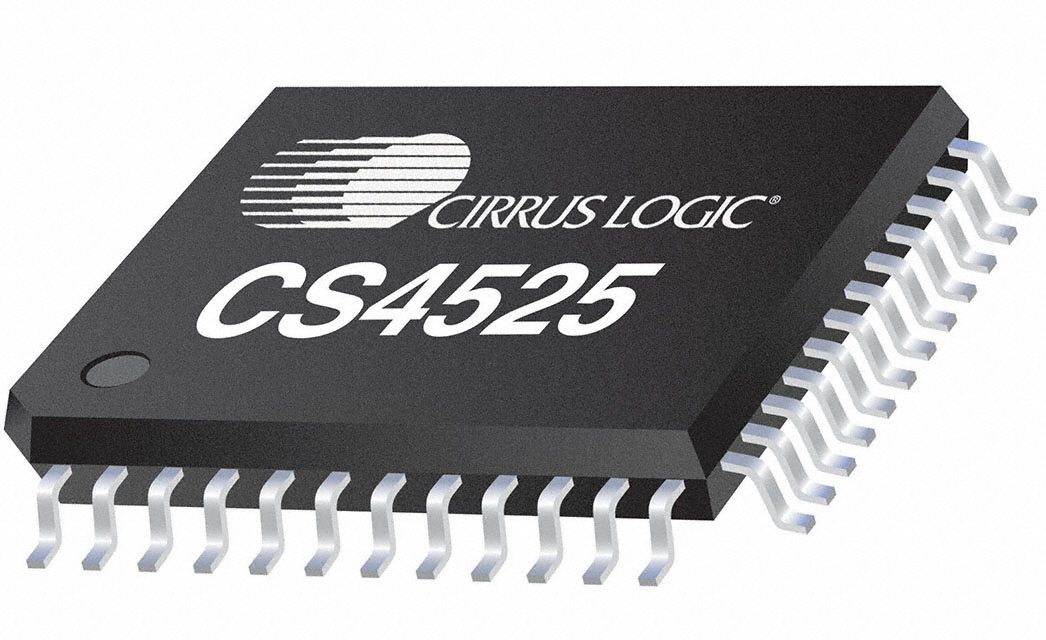

| Part Number | CS4525-CNZ |
|---|
| Manufacturer | Cirrus Logic Inc. |
|---|
| Description | IC AMP AUDIO PWR 30W QUAD 48QFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | Popguard? |
|---|
| Family | Linear - Amplifiers - Audio |
|---|
| PCN Obsolescence/ EOL |
CS/X4525-CNZ(R) Devices 31/Jan/2014
|
|---|
| Standard Package | 260 |
|---|
| Packaging | Tray |
|---|
| Type | Class D |
|---|
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
|---|
| Max Output Power x Channels @ Load | 30W x 1 @ 4 Ohm; 15W x 2 @ 8 Ohm |
|---|
| Voltage - Supply | 8 V ~ 18 V |
|---|
| Features | ADC, Depop, I2C, I2S, Mute, PWM, Short-Circuit and Thermal Protection, Volume Control |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -10°C ~ 70°C (TA) |
|---|
| Supplier Device Package | 48-QFN-EP (9x9) |
|---|
| Package / Case | 48-QFN |
|---|
| For Use With | 598-1586-ND - REFERENCE BOARD FOR CS4525 PWM |
|---|
| Other Names | 598-1264CS4525CNZ |
|---|
