| Part Number | DS21348TN+ |
|---|
| Manufacturer | Maxim Integrated |
|---|
| Description | IC LIU T1/E1/J1 3.3V 44-TQFP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - Telecom |
|---|
| Mfg Application Notes |
T1/E1 Network Interface Design
T1/E1 and T3/E3 Transformer Selection Guide
Using RCLK in a BITS/SSU Application
T1/E1/J1 Dual Connector Interface
Using DS2148/DS21348 as Repeater
Hitless Protection Switching with 1+1 Redundancy
Additional Pulse Amplitude Settings for DS2148, DS21348, DS21Q48 |
|---|
| Product Training Modules |
Lead (SnPb) Finish for COTS
Long-Term Supply Program
|
|---|
| Standard Package | 160 |
|---|
| Packaging | Tray |
|---|
| Function | Line Interface Unit (LIU) |
|---|
| Interface | Parallel, Serial |
|---|
| Number of Circuits | 1 |
|---|
| Voltage - Supply | 3.135 V ~ 3.465 V |
|---|
| Current - Supply | 66mA |
|---|
| Power (Watts) | * |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|

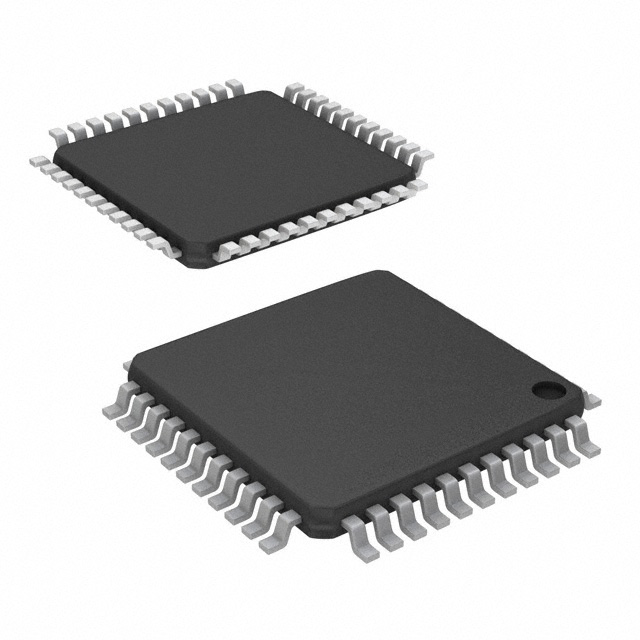

| Package / Case | 44-TQFP |
|---|
| Supplier Device Package | 44-TQFP (10x10) |
|---|
| Includes | * |
|---|
| Online Catalog | Telecom Interface |
|---|
