| Part Number | DS80PCI402SQE/NOPB |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC REDRIVER PCIE 8CH 54WQFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - Signal Buffers, Repeaters, Splitters |
|---|
| PCN Design/Specification |
Copper Wire Base Metal 15/Oct/2014
|
|---|
| Manufacturer Product Page |
DS80PCI402SQE/NOPB Specifications
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | Buffer, ReDriver |
|---|
| Applications | PCIe |
|---|
| Input | CML |
|---|
| Output | CML |
|---|
| Data Rate (Max) | 8Gbps |
|---|
| Number of Channels | 8 |
|---|
| Delay Time | 200ps |
|---|
| Signal Conditioning | Input Equalization, Output De-Emphasis |
|---|
| Capacitance - Input | 10pF |
|---|
| Voltage - Supply | 2.375 V ~ 3.6 V |
|---|
| Current - Supply | - |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

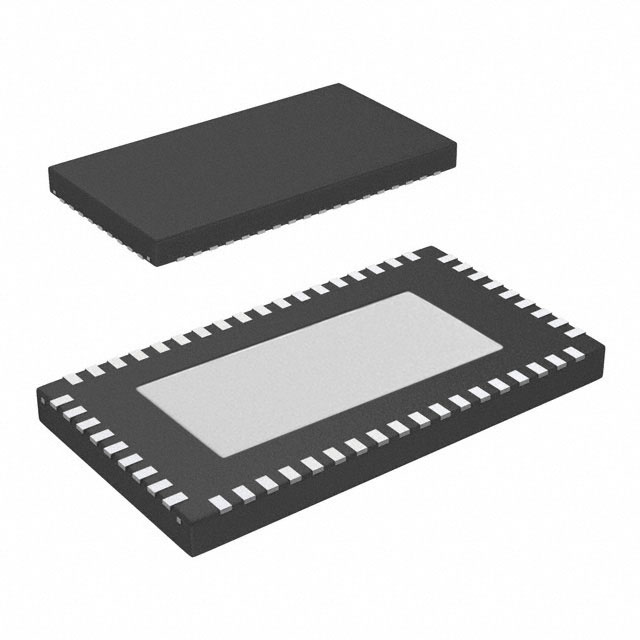

| Package / Case | 54-WFQFN Exposed Pad |
|---|
| Supplier Device Package | 54-WQFN (10x5.5) |
|---|
| Online Catalog | Buffers |
|---|
| Other Names | 296-38933-1 |
|---|
