| Part Number | PCF8574RGTR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC I/O EXPANDER I2C 8B 16VQFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - I/O Expanders |
|---|
| Product Training Modules |
I2C and SMBus Solutions
|
|---|
| PCN Design/Specification |
Copper Wire Base Metal 19/Jun/2014
Copper Wire Revision B 16/Dec/2014
|
|---|
| Manufacturer Product Page |
PCF8574RGTR Specifications
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of I/O | 8 |
|---|
| Interface | I2C |
|---|
| Interrupt Output | Yes |
|---|
| Features | POR |
|---|
| Output Type | Open Drain |
|---|
| Current - Output Source/Sink | 1mA, 25mA |
|---|
| Frequency - Clock | 100kHz |
|---|
| Voltage - Supply | 2.5 V ~ 6 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|

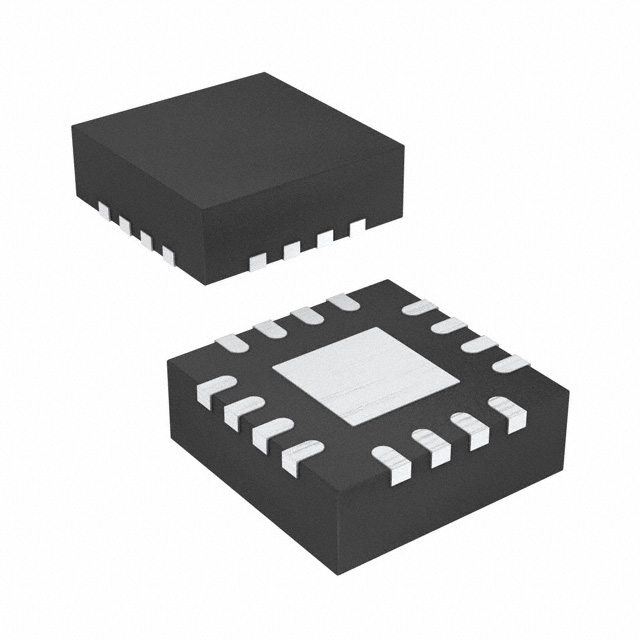

| Package / Case | 16-VFQFN Exposed Pad |
|---|
| Supplier Device Package | 16-QFN (3x3) |
|---|
| Online Catalog | I2C I/O Expanders |
|---|
| Other Names | 296-21238-2PCF8574RGTRG4PCF8574RGTRG4-ND |
|---|
