| Part Number | MCP23S17T-E/SO |
|---|
| Manufacturer | Microchip Technology |
|---|
| Description | IC I/O EXPANDER SPI 16B 28SOIC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - I/O Expanders |
|---|
| PCN Assembly/Origin |
SOIC-28L Palladium Coated Copper 29/Aug/2013
SOIC-28L Revision 17/Dec/2013
SOIC-28L Revision 06/Feb/2014
|
|---|
| PCN Packaging |
Reel Design Update 07/May/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Number of I/O | 16 |
|---|
| Interface | SPI |
|---|
| Interrupt Output | Yes |
|---|
| Features | POR |
|---|
| Output Type | Push-Pull |
|---|
| Current - Output Source/Sink | 25mA |
|---|
| Frequency - Clock | 10MHz |
|---|
| Voltage - Supply | 1.8 V ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

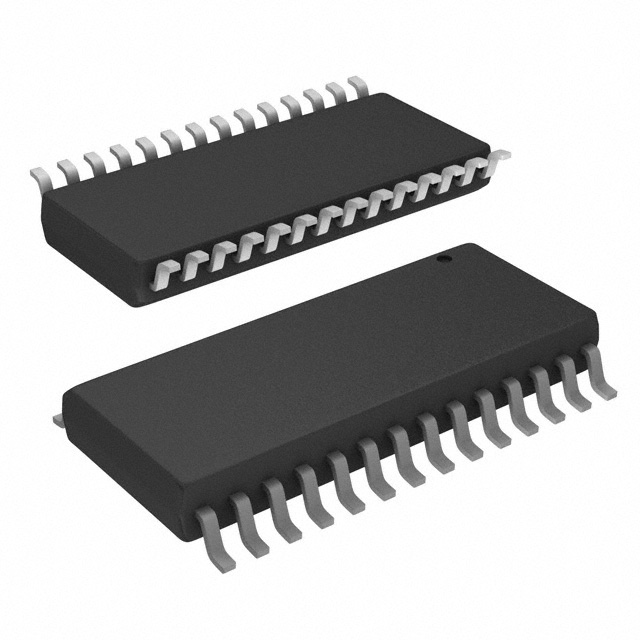

| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
|---|
| Supplier Device Package | 28-SOIC |
|---|
| Online Catalog | I/O Expanders |
|---|
| For Use With | 1471-1404-ND - DEV BOARD EXPAND 2 CLICK |
|---|
| Other Names | MCP23S17T-E/SODKR |
|---|
