| Part Number | AD9912ABCPZ |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC DDS 1GSPS DAC 14BIT 64LFCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - Direct Digital Synthesis (DDS) |
|---|
| Mfg Application Notes |
Solution for Wireless Communication Tester
|
|---|
| Product Training Modules |
Direct Digital Synthesis Tutorial Series (1 of 7): Introduction
Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action
Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter
Direct Digital Synthesis Tutorial Series (5 of 7): Digital-to-Analog Reconstruction |
|---|
| PCN Design/Specification |
AD9912A Die Update 8/Aug/2013
AD9912A Die Revision A 10/Feb/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Tray |
|---|
| Resolution (Bits) | 14 b |
|---|
| Master fclk | 1GHz |
|---|
| Tuning Word Width (Bits) | 48 b |
|---|
| Voltage - Supply | 1.8V, 3.3V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|

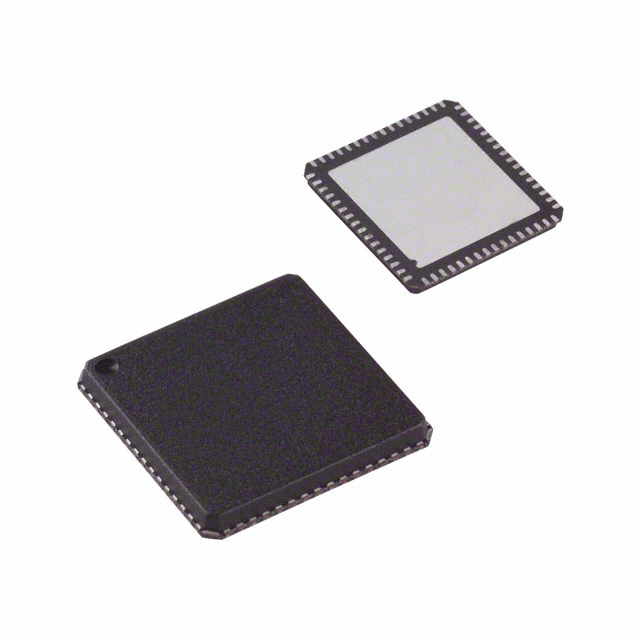

| Package / Case | 64-VFQFN Exposed Pad, CSP |
|---|
| Supplier Device Package | 64-LFCSP-VQ (9x9) |
|---|
| Online Catalog | AD9858, AD9912 |
|---|
