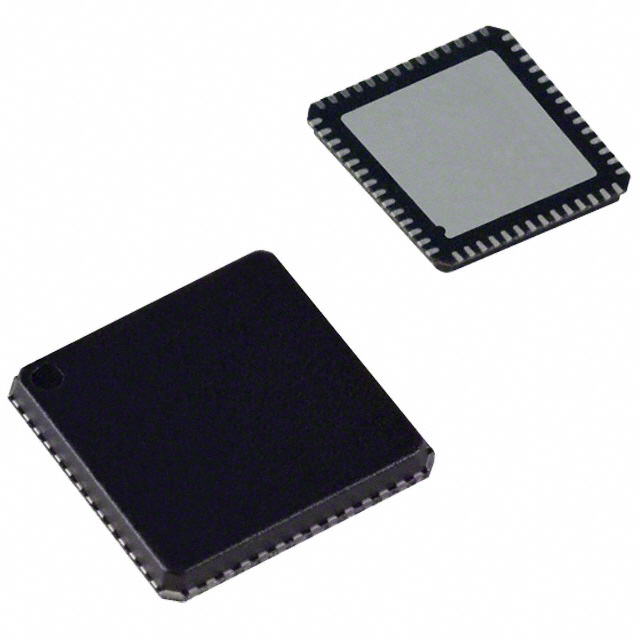

| Part Number | AD9911BCPZ |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC DDS 500MSPS DAC 10BIT 56LFCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - Direct Digital Synthesis (DDS) |
|---|
| Product Training Modules |
Direct Digital Synthesis Tutorial Series (1 of 7): Introduction
Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action
Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter
Direct Digital Synthesis Tutorial Series (5 of 7): Digital-to-Analog Reconstruction |
|---|
| Standard Package | 1 |
|---|
| Packaging | Tray |
|---|
| Resolution (Bits) | 10 b |
|---|
| Master fclk | 500MHz |
|---|
| Tuning Word Width (Bits) | 32 b |
|---|
| Voltage - Supply | 1.71 V ~ 1.96 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 56-VFQFN Exposed Pad, CSP |
|---|
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
|---|
| Online Catalog | AD9911 |
|---|
| For Use With | AD9911/PCBZ-ND - BOARD EVAL FOR AD9911 |
|---|
