| Part Number | AD9834BRUZ |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC DDS 10BIT 50MHZ LP 20-TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Interface - Direct Digital Synthesis (DDS) |
|---|
| Product Training Modules |
Direct Digital Synthesis Tutorial Series (1 of 7): Introduction
Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action
Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter
Direct Digital Synthesis Tutorial Series (5 of 7): Digital-to-Analog Reconstruction |
|---|
| Design Resources |
Amplitude Control Circuit for AD9834 Waveform Generator (CN0156)
|
|---|
| PCN Assembly/Origin |
Qualification Assembly Site 23/Jul/2014
|
|---|
| Standard Package | 75 |
|---|
| Packaging | Tube |
|---|
| Resolution (Bits) | 10 b |
|---|
| Master fclk | 50MHz |
|---|
| Tuning Word Width (Bits) | 28 b |
|---|
| Voltage - Supply | 2.3 V ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Mounting Type | Surface Mount |
|---|

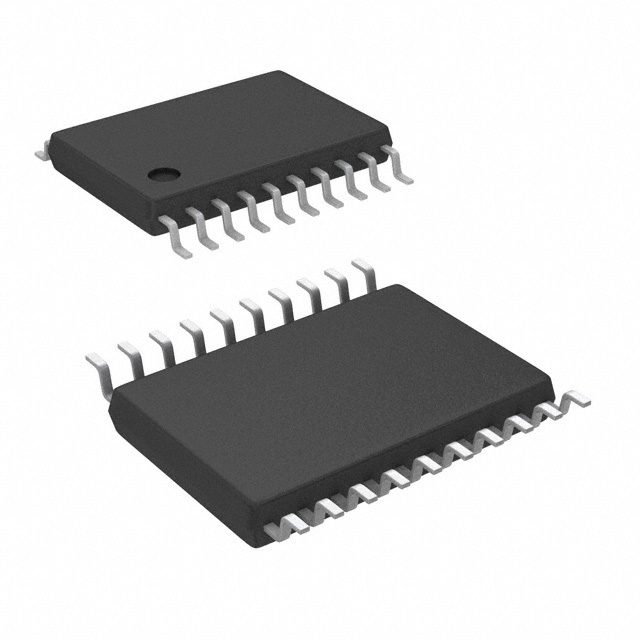

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
|---|
| Supplier Device Package | 20-TSSOP |
|---|
| Online Catalog | AD9834, AD9838 |
|---|
