| Part Number | 74HC4066PW,118 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | IC SWITCH QUAD 1X2 14TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | 74HC |
|---|
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers |
|---|
| PCN Assembly/Origin |
ICN6 to ICN8 Transfer 13/Jul/2013
|
|---|
| PCN Packaging |
Date Code Extended 18/Jul/2013
2 Year Datecode Control 20/Jul/2013
Lighter Packing Reels 30/Mar/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Function | Multiplexer/Demultiplexer |
|---|
| Circuit | 4 x 1:1 |
|---|
| On-State Resistance | 95 Ohm |
|---|
| Voltage Supply Source | Single Supply |
|---|
| Voltage - Supply, Single/Dual (±) | 2 V ~ 10 V |
|---|
| Current - Supply | 80μA |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

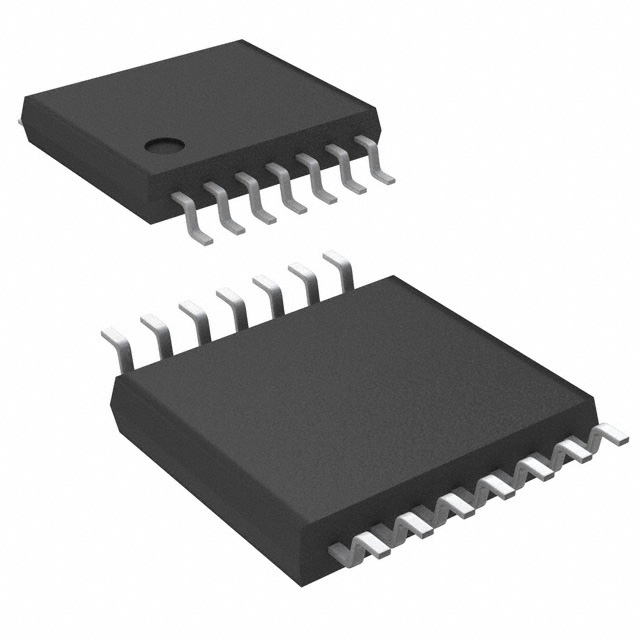

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
|---|
| Supplier Device Package | 14-TSSOP |
|---|
| Online Catalog | Multiplexer/Demultiplexer |
|---|
| Other Names | 568-9980-6 |
|---|
