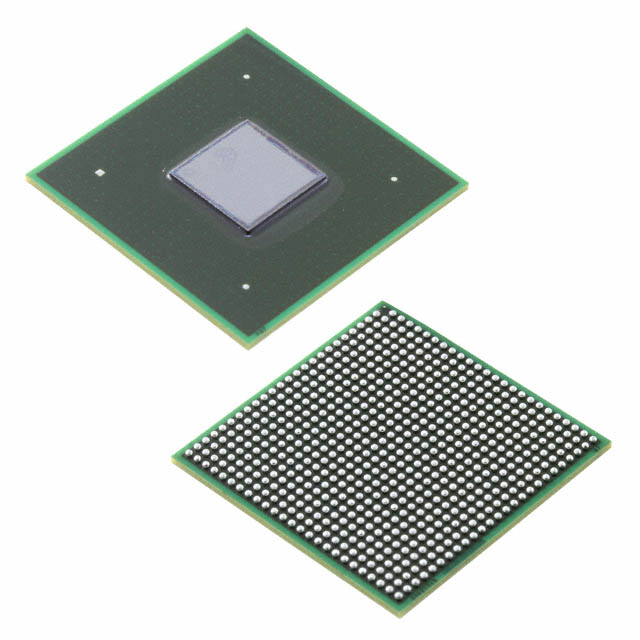

| Part Number | MCIMX6D5EYM10AC |
|---|
| Manufacturer | Freescale Semiconductor |
|---|
| Description | IC MPU I.MX6D 1.0GHZ 624FCBGA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | i.MX6D |
|---|
| Family | Embedded - Microprocessors |
|---|
| Product Training Modules |
i.MX 6 Series Applications Processors Introduction
|
|---|
| PCN Design/Specification |
I.MX 6DUAL6QUAD Update 04/Jun/2013
I.MX 6Dual/6Quad Errata Update 11/Dec/2013
I.MX6DQ Rev 1.3 Errata Revision 28/Jan/2014
I.MX6 Datasheet Update 01/May/2014
Reference Manual Update 01/Aug/2014
Design Change 01/Aug/2014
Errata Update 01/Jul/2015
|
|---|
| PCN Assembly/Origin |
i.MX6Q/D Assembly Site 24/Jan/2014
Assembly Site Addition 05/Mar/2015
Reference Manual Update 28/Jul/2015
|
|---|
| Standard Package | 120 |
|---|
| Packaging | Tray |
|---|
| Core Processor | ARM? Cortex?-A9 |
|---|
| Number of Cores/Bus Width | 2 Core, 32-Bit |
|---|
| Speed | 1.0GHz |
|---|
| Co-Processors/DSP | Multimedia; NEON? SIMD |
|---|
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
|---|
| Graphics Acceleration | Yes |
|---|
| Display & Interface Controllers | Keypad, LCD |
|---|
| Ethernet | 10/100/1000 Mbps (1) |
|---|
| SATA | SATA 3Gbps (1) |
|---|
| USB | USB 2.0 + PHY (4) |
|---|
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
|---|
| Operating Temperature | -20°C ~ 105°C |
|---|
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection |
|---|
| Package / Case | 624-FBGA, FCBGA |
|---|
| Supplier Device Package | 624-FCBGA (21x21) |
|---|
| Additional Interfaces | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|---|
| Online Catalog | i.MX 6D |
|---|
