| Part Number | PIC24F16KA101-I/SS |
|---|
| Manufacturer | Microchip Technology |
|---|
| Description | IC MCU 16BIT 16KB FLASH 20SSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | PIC? XLP? 24F |
|---|
| Family | Embedded - Microcontrollers |
|---|
| Product Training Modules |
Getting the Lowest Current Consumption from a PIC24F MCU
Bluetooth Audio Development Platform
|
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Design/Specification |
PIC24F16KA102 Datasheet/Errata Update 30/Jan/2014
PIC24F16KA102 Errata/Datasheet Update 15/Apr/2014
Dataheet/Errata Update 10/Jul/2014
Errata/Datasheet Update 13/Jul/2015
|
|---|
| PCN Assembly/Origin |
Qualification Copper Wire 20/Oct/2014
|
|---|
| Standard Package | 67 |
|---|
| Packaging | Tube |
|---|
| Core Processor | PIC |
|---|
| Core Size | 16-Bit |
|---|
| Speed | 32MHz |
|---|
| Connectivity | I2C, IrDA, SPI, UART/USART |
|---|
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
|---|
| Number of I/O | 18 |
|---|
| Program Memory Size | 16KB (5.5K x 24) |
|---|
| Program Memory Type | FLASH |
|---|
| EEPROM Size | 512 x 8 |
|---|
| RAM Size | 1.5K x 8 |
|---|
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
|---|
| Data Converters | A/D 9x10b |
|---|
| Oscillator Type | Internal |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

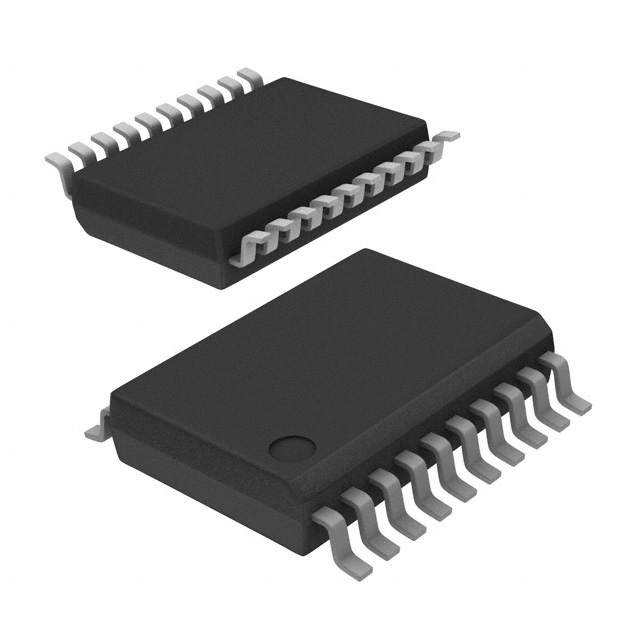

| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
|---|
| Supplier Device Package | 20-SSOP |
|---|
| Online Catalog | PIC? XLP? 24F |
|---|
| For Use With | PG164130-ND - PROGRAMMER MCU PICKIT 3DV164131-ND - KIT STARTER PICKIT 3 PROGRAMMERDV164035-ND - MPLAB ICD3 DEBUGGER/PROGRAMMER1188-1066-ND - MICROCHIP PICKIT3COMPATIBLE PROGMA240017-ND - MODULE PLUG-IN PIC24F16KA102 PIM |
|---|
| Other Names | PIC24F16KA101ISS |
|---|
