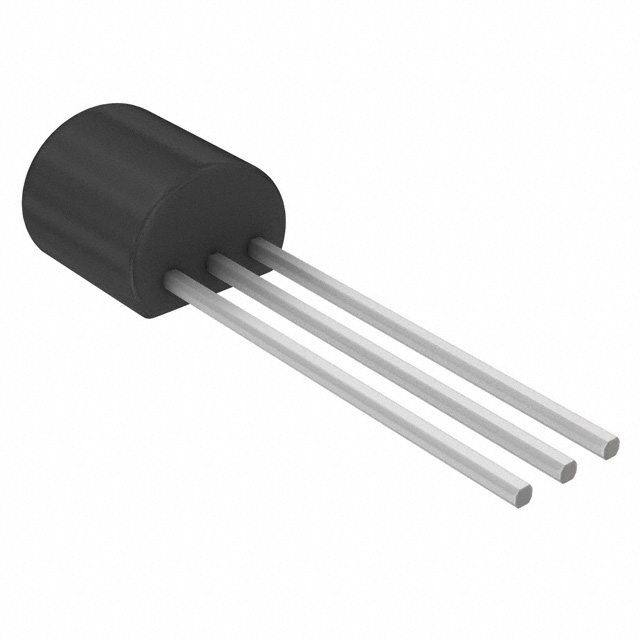

| Part Number | Z0103MA 5AL2 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | TRIAC SENS GATE 600V 1A TO92-3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Triacs |
|---|
| Other Related Documents |
Z01 View All Specifications
|
|---|
| Product Training Modules |
AC Switches Family, Part One
AC Switches Family, Part Two
|
|---|
| Standard Package | 2,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Triac Type | Logic - Sensitive Gate |
|---|
| Voltage - Off State | 600V |
|---|
| Current - On State (It (RMS)) (Max) | 1A |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 8.5A |
|---|
| Current - Gate Trigger (Igt) (Max) | 3mA |
|---|
| Current - Hold (Ih) (Max) | 7mA |
|---|
| Configuration | Single |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
|---|
| Supplier Device Package | TO-92-3 |
|---|
| Online Catalog | Sensitive Gate Triacs |
|---|
| Other Names | 497-4682-2Z0103MA5AL2 |
|---|
