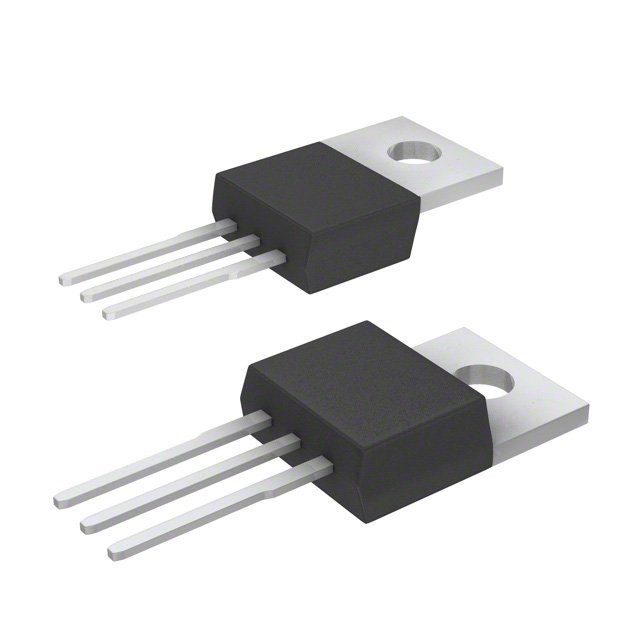

| Part Number | BTA25-600CW3G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | TRIAC 600V 25A TO220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2,064 |
| Datasheet | BTA25-600CW3G |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
BTA25-600CW3G
-
- USD 2.24
Product Details
| Part Number | BTA25-600CW3G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | TRIAC 600V 25A TO220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | - |
| Family | Triacs |
| Standard Package | 50 |
| Packaging | Tube |
| Triac Type | Standard |
| Voltage - Off State | 600V |
| Current - On State (It (RMS)) (Max) | 25A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz |
| Current - Gate Trigger (Igt) (Max) | 35mA |
| Current - Hold (Ih) (Max) | 50mA |
| Configuration | Single |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Online Catalog | Standard Triacs |
| Other Names | BTA25-600CW3G-NDBTA25-600CW3GOSBTA25600CW3G |
