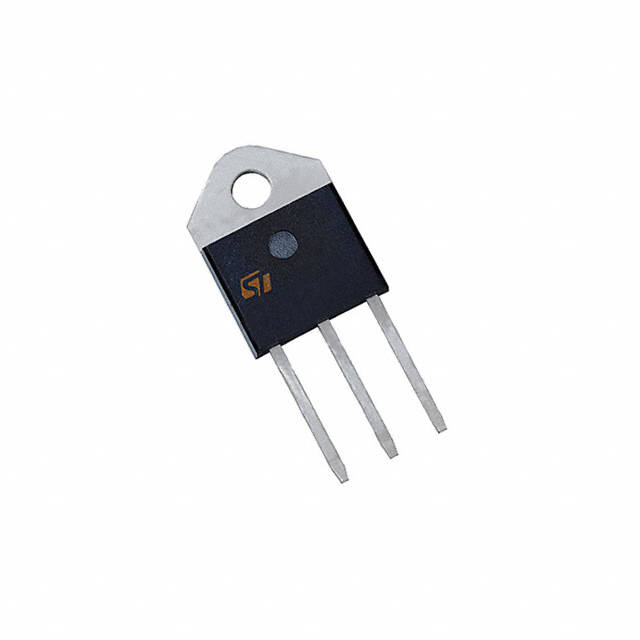

| Part Number | BTA26-800BWRG |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | TRIAC ALTERNISTOR 800V 25A TOP3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | Snubberless? |
|---|
| Family | Triacs |
|---|
| Other Related Documents |
BTA26 View All Specifications
|
|---|
| Product Training Modules |
AC Switches Family, Part One
AC Switches Family, Part Two
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| Triac Type | Alternistor - Snubberless |
|---|
| Voltage - Off State | 800V |
|---|
| Current - On State (It (RMS)) (Max) | 25A |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 260A |
|---|
| Current - Gate Trigger (Igt) (Max) | 50mA |
|---|
| Current - Hold (Ih) (Max) | 75mA |
|---|
| Configuration | Single |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TOP-3 Insulated |
|---|
| Supplier Device Package | TOP3 |
|---|
| Online Catalog | Alternistor Triacs |
|---|
| Other Names | 497-4172-5BTA26800BWRG |
|---|
