| Part Number | DTC114YETL |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | TRANS PREBIAS NPN 150MW EMT3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Single, Pre-Biased |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Transistor Type | NPN - Pre-Biased |
|---|
| Current - Collector (Ic) (Max) | 70mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Resistor - Base (R1) (Ohms) | 10k |
|---|
| Resistor - Emitter Base (R2) (Ohms) | 47k |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250μA, 5mA |
|---|
| Current - Collector Cutoff (Max) | 500nA |
|---|
| Frequency - Transition | 250MHz |
|---|
| Power - Max | 150mW |
|---|
| Mounting Type | Surface Mount |
|---|

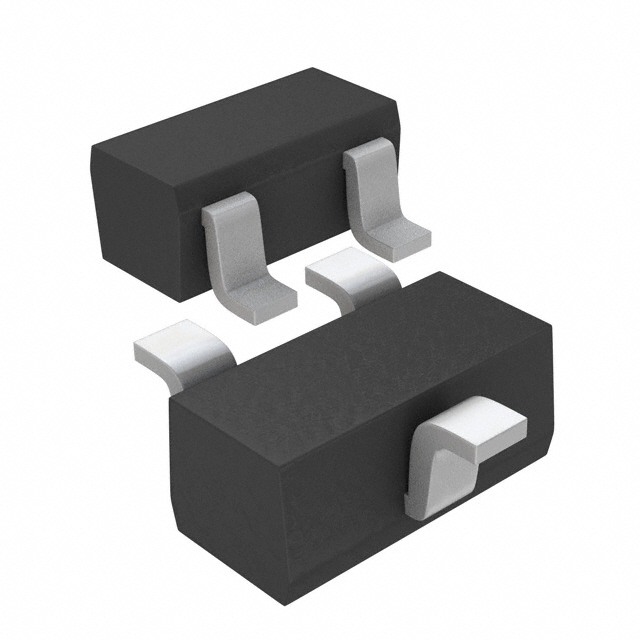

| Package / Case | SC-75, SOT-416 |
|---|
| Supplier Device Package | EMT3 |
|---|
| Online Catalog | NPN Pre-biased Transistors |
|---|
| Other Names | DTC114YETLDKR |
|---|
