| Part Number | DTC143XKAT146 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | TRANS PREBIAS NPN 200MW SMT3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Single, Pre-Biased |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Transistor Type | NPN - Pre-Biased |
|---|
| Current - Collector (Ic) (Max) | 100mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Resistor - Base (R1) (Ohms) | 4.7k |
|---|
| Resistor - Emitter Base (R2) (Ohms) | 10k |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 5V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500μA, 10mA |
|---|
| Current - Collector Cutoff (Max) | 500nA |
|---|
| Frequency - Transition | 250MHz |
|---|
| Power - Max | 200mW |
|---|
| Mounting Type | Surface Mount |
|---|

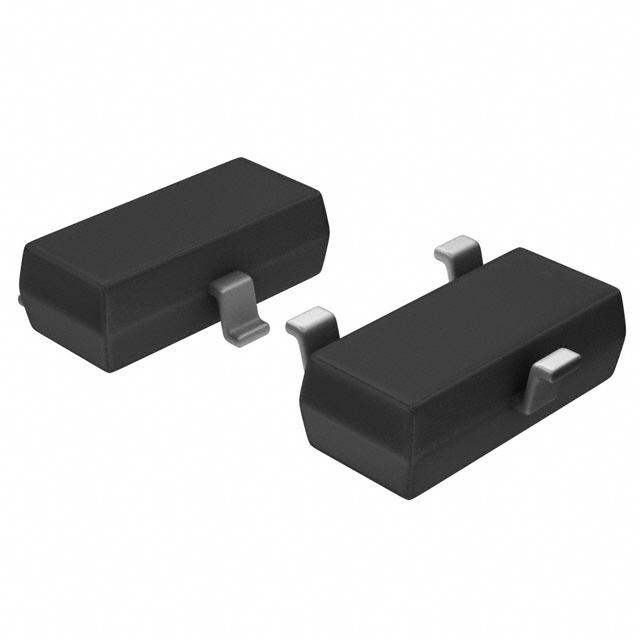

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
|---|
| Supplier Device Package | SMT3 |
|---|
| Online Catalog | NPN Pre-biased Transistors |
|---|
| Other Names | DTC143XKAT146DKR |
|---|
