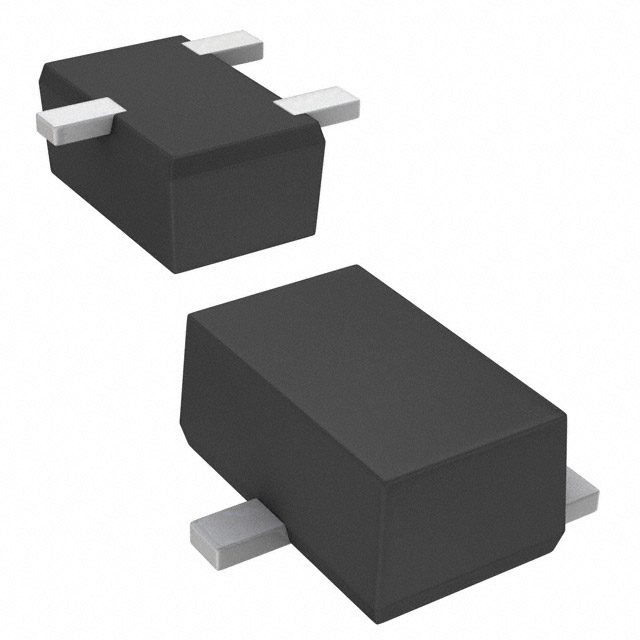

| Part Number | DSC5001R0L |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | TRANS NPN 50V 0.1A SMINI3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Single |
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Transistor Type | NPN |
|---|
| Current - Collector (Ic) (Max) | 100mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA |
|---|
| Current - Collector Cutoff (Max) | 100μA |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2mA, 10V |
|---|
| Power - Max | 150mW |
|---|
| Frequency - Transition | 150MHz |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | SC-85 |
|---|
| Supplier Device Package | SMini3-F2-B |
|---|
| Online Catalog |
NPN Transistors
|
|---|
| Other Names | DSC5001R0LDKR |
|---|
