| Part Number | TIP47 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | TRANS NPN 250V 1A TO-220 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Single |
|---|
| Other Related Documents |
TIP47 View All Specifications
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Transistor Type | NPN |
|---|
| Current - Collector (Ic) (Max) | 1A |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 250V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 1V @ 200mA, 1A |
|---|
| Current - Collector Cutoff (Max) | 1mA |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 300mA, 10V |
|---|
| Power - Max | 2W |
|---|
| Frequency - Transition | 10MHz |
|---|
| Mounting Type | Through Hole |
|---|

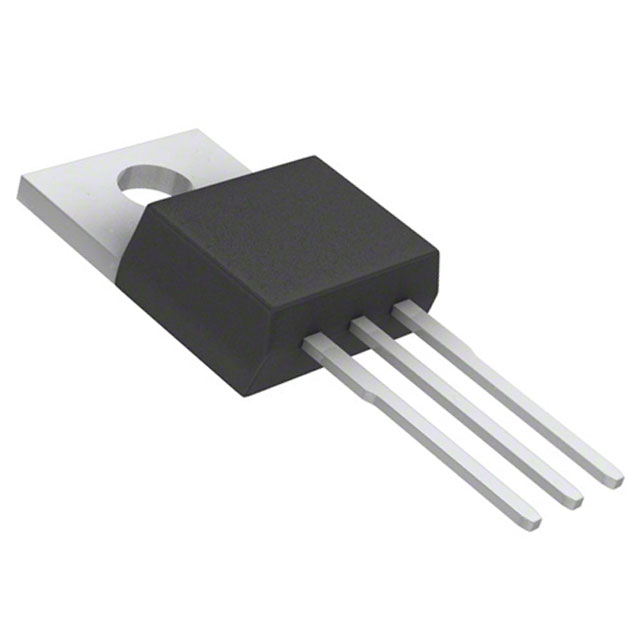

| Package / Case | TO-220-3 |
|---|
| Supplier Device Package | TO-220AB |
|---|
| Online Catalog | NPN Transistors |
|---|
| Other Names | 497-2631-5 |
|---|
