| Part Number | DCX115EK-7-F |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | TRANS NPN/PNP PREBIAS 0.3W SC74R |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Arrays, Pre-Biased |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
|---|
| Current - Collector (Ic) (Max) | 100mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Resistor - Base (R1) (Ohms) | 100k |
|---|
| Resistor - Emitter Base (R2) (Ohms) | 100k |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 5mA, 5V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250μA, 5mA |
|---|
| Current - Collector Cutoff (Max) | 500nA |
|---|
| Frequency - Transition | 250MHz |
|---|
| Power - Max | 300mW |
|---|
| Mounting Type | Surface Mount |
|---|

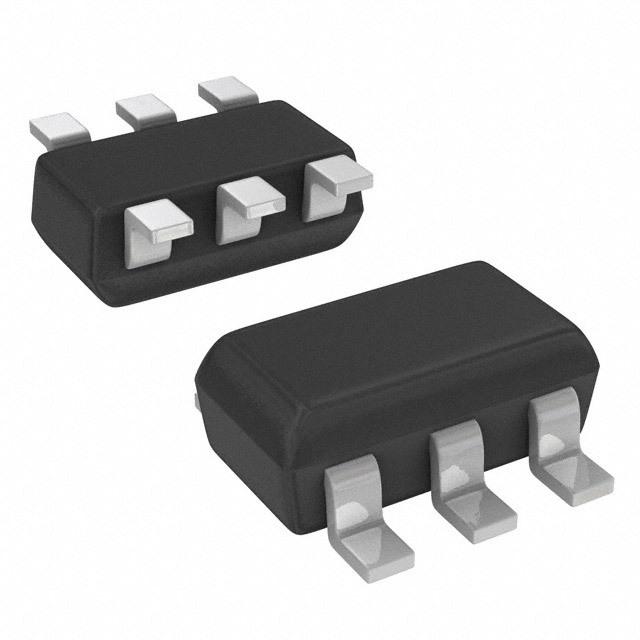

| Package / Case | SC-74R |
|---|
| Supplier Device Package | SC-74R |
|---|
| Other Names | DCX115EK-7-FDICT |
|---|
