| Part Number | NSBC114EPDXV6T1G |
|---|
| Manufacturer | ON Semiconductor |
|---|

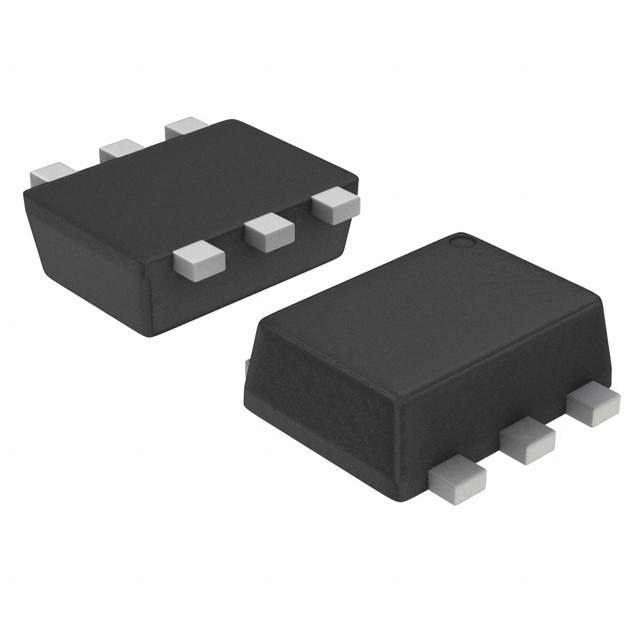

| Description | TRANS PREBIAS NPN/PNP SOT563 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Arrays, Pre-Biased |
|---|
| PCN Design/Specification |
Wire Bond 01/Dec/2010
|
|---|
| Standard Package | 4,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
|---|
| Current - Collector (Ic) (Max) | 100mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Resistor - Base (R1) (Ohms) | 10k |
|---|
| Resistor - Emitter Base (R2) (Ohms) | 10k |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 35 @ 5mA, 10V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300μA, 10mA |
|---|
| Current - Collector Cutoff (Max) | 500nA |
|---|
| Frequency - Transition | - |
|---|
| Power - Max | 500mW |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | SOT-563, SOT-666 |
|---|
| Supplier Device Package | SOT-563 |
|---|
| Online Catalog | NPN, PNP Pre-Biased Transistor Arrays |
|---|
| Other Names | NSBC114EPDXV6T1GOSNSBC114EPDXV6T1GOS-NDNSBC114EPDXV6T1GOSTR |
|---|
