| Part Number | ULN2003APWRG4 |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | TRANS 7NPN DARL 50V 0.5A TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Transistors (BJT) - Arrays |
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 2,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Transistor Type | 7 NPN Darlington |
|---|
| Current - Collector (Ic) (Max) | 500mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 50V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500μA, 350mA |
|---|
| Current - Collector Cutoff (Max) | - |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
|---|
| Power - Max | - |
|---|
| Frequency - Transition | - |
|---|
| Mounting Type | Surface Mount |
|---|

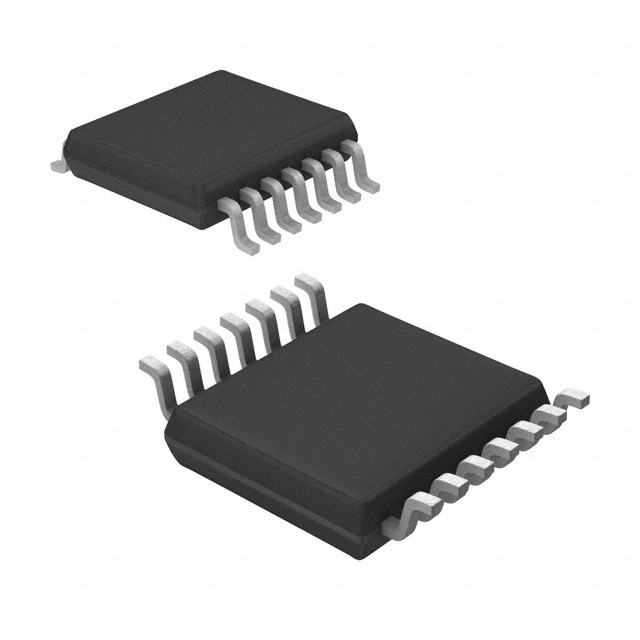

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
|---|
| Supplier Device Package | 16-TSSOP |
|---|
| Other Names | ULN2003APWRE4
ULN2003APWRE4-ND |
|---|
