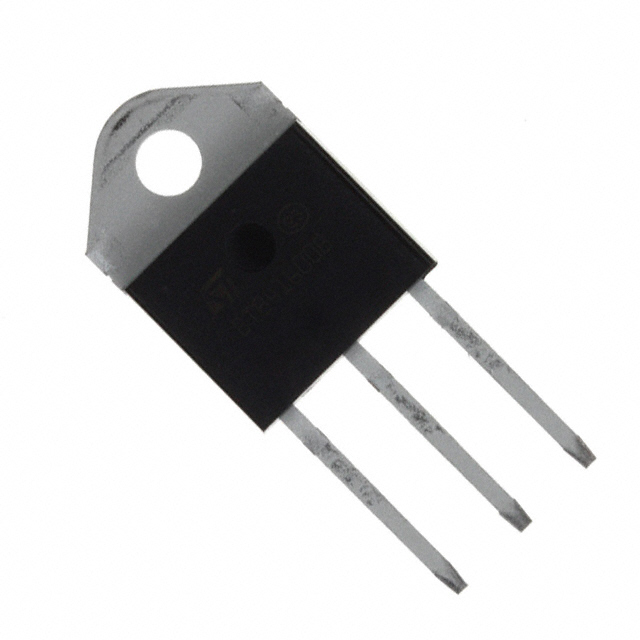

| Part Number | BTW69-1200RG |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | IC SCR 1200V 50A TOP-3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| Other Related Documents |
BTW69 View All Specifications
|
|---|
| Product Training Modules |
AC Switches Family, Part One
AC Switches Family, Part Two
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| Voltage - Off State | 1200V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
|---|
| Current - Gate Trigger (Igt) (Max) | 80mA |
|---|
| Voltage - On State (Vtm) (Max) | 1.9V |
|---|
| Current - On State (It (AV)) (Max) | 32A |
|---|
| Current - On State (It (RMS)) (Max) | 50A |
|---|
| Current - Hold (Ih) (Max) | 150mA |
|---|
| Current - Off State (Max) | 10μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 580A, 610A |
|---|
| SCR Type | Standard Recovery |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TOP-3 |
|---|
| Supplier Device Package | TOP3 |
|---|
| Online Catalog | Standard Recovery SCRs |
|---|
| Other Names | 497-2434497-2434-5497-2434-NDBTW69-1200BTW691200RG |
|---|
