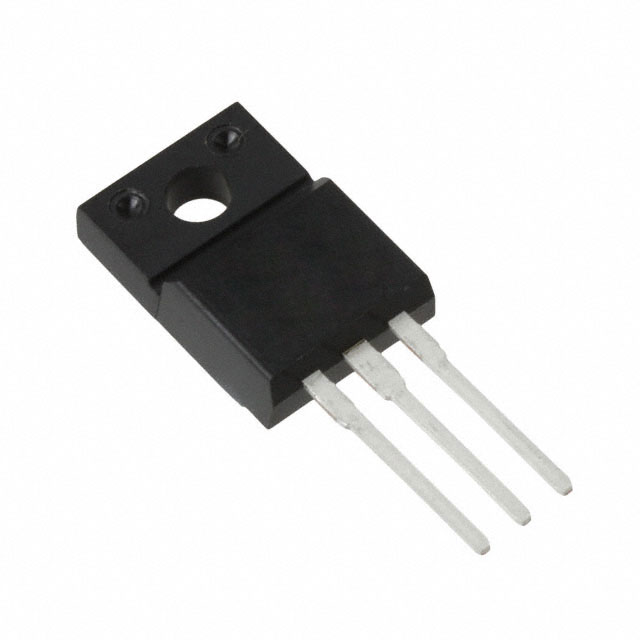

| Part Number | S6055R |
|---|
| Manufacturer | Littelfuse Inc. |
|---|
| Description | SCR NON-ISOLATE 600V 55A TO220AB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Voltage - Off State | 600V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
|---|
| Current - Gate Trigger (Igt) (Max) | 40mA |
|---|
| Voltage - On State (Vtm) (Max) | 1.8V |
|---|
| Current - On State (It (AV)) (Max) | 35A |
|---|
| Current - On State (It (RMS)) (Max) | 55A |
|---|
| Current - Hold (Ih) (Max) | 60mA |
|---|
| Current - Off State (Max) | 10μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
|---|
| SCR Type | Standard Recovery |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-220-3 |
|---|
| Supplier Device Package | TO-220 Non-Isolated Tab |
|---|
| Online Catalog | Silicon Controlled Rectifiers |
|---|
