| Part Number | MCR08BT1G |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | THYRISTOR SCR 0.8A 200V SOT223 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| PCN Design/Specification |
Datasheet MSL Updated 2/April/2007
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Voltage - Off State | 200V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
|---|
| Current - Gate Trigger (Igt) (Max) | 200μA |
|---|
| Voltage - On State (Vtm) (Max) | 1.7V |
|---|
| Current - On State (It (AV)) (Max) | - |
|---|
| Current - On State (It (RMS)) (Max) | 800mA |
|---|
| Current - Hold (Ih) (Max) | 5mA |
|---|
| Current - Off State (Max) | 10μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A @ 60Hz |
|---|
| SCR Type | Sensitive Gate |
|---|
| Operating Temperature | -40°C ~ 110°C |
|---|
| Mounting Type | Surface Mount |
|---|

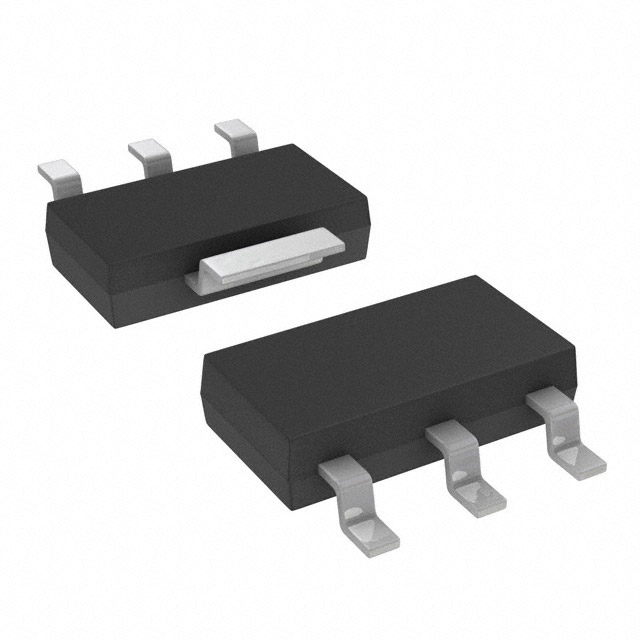

| Package / Case | TO-261-4, TO-261AA |
|---|
| Supplier Device Package | SOT-223 |
|---|
| Online Catalog | Sensitive Gate SCRs |
|---|
| Other Names | MCR08BT1GOSDKR |
|---|
