| Part Number | CMA30E1600PN |
|---|
| Manufacturer | IXYS |
|---|
| Description | SCR PHASE CTRL 1600V TO-220ABFP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Voltage - Off State | 1600V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
|---|
| Current - Gate Trigger (Igt) (Max) | 28mA |
|---|
| Voltage - On State (Vtm) (Max) | 1.7V |
|---|
| Current - On State (It (AV)) (Max) | 30A |
|---|
| Current - On State (It (RMS)) (Max) | 50A |
|---|
| Current - Hold (Ih) (Max) | 60mA |
|---|
| Current - Off State (Max) | 10μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 260A, 280A |
|---|
| SCR Type | Standard Recovery |
|---|
| Operating Temperature | -40°C ~ 150°C |
|---|
| Mounting Type | Through Hole |
|---|

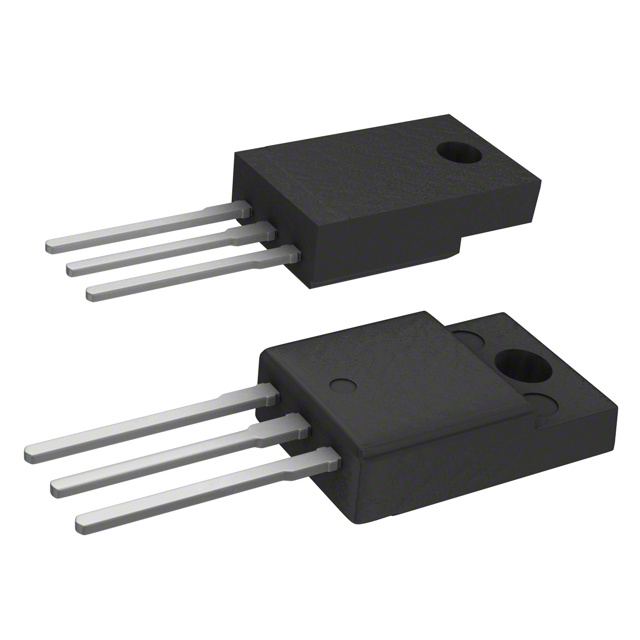

| Package / Case | TO-220-3 Full Pack, Isolated Tab |
|---|
| Supplier Device Package | TO-220ABFP |
|---|
