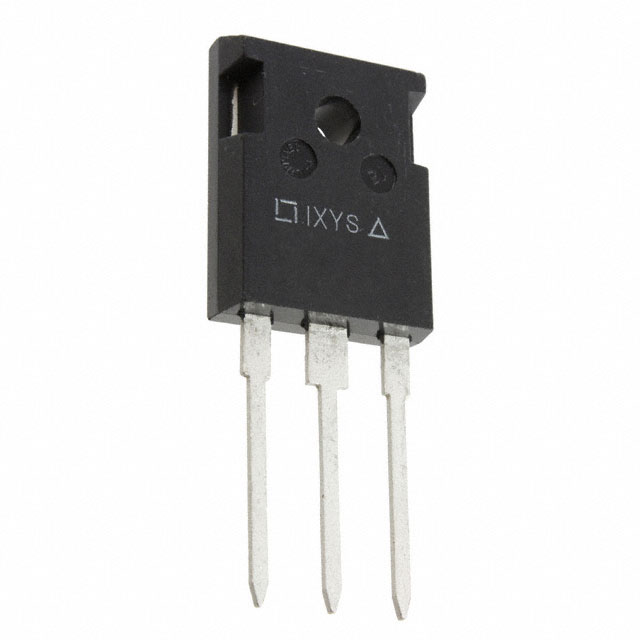

| Part Number | CS45-16IO1 |
|---|
| Manufacturer | IXYS |
|---|
| Description | THYRISTOR PHASE 1600V TO-247AD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| Voltage - Off State | 1600V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
|---|
| Current - Gate Trigger (Igt) (Max) | 100mA |
|---|
| Voltage - On State (Vtm) (Max) | 1.64V |
|---|
| Current - On State (It (AV)) (Max) | 48A |
|---|
| Current - On State (It (RMS)) (Max) | 75A |
|---|
| Current - Hold (Ih) (Max) | 100mA |
|---|
| Current - Off State (Max) | 5mA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 520A, 560A |
|---|
| SCR Type | Standard Recovery |
|---|
| Operating Temperature | -40°C ~ 140°C |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-3P-3 Full Pack |
|---|
| Supplier Device Package | TO-247AD |
|---|
| Online Catalog | Phase Control Thyristors Standard Recovery SCRs |
|---|
| Other Names | CS4516IO1 |
|---|
