| Part Number | VS-40TPS12APBF |
|---|
| Manufacturer | Vishay Semiconductor Diodes Division |
|---|
| Description | SCR PHASE CTRL 55A 1200V TO247AC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| PCN Assembly/Origin |
DD-005-2014-Rev-0 03/Mar/2014
|
|---|
| PCN Other |
DD-018-2015-Rev-00 25/May/2015
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Voltage - Off State | 1200V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 2.5V |
|---|
| Current - Gate Trigger (Igt) (Max) | 150mA |
|---|
| Voltage - On State (Vtm) (Max) | 1.85V |
|---|
| Current - On State (It (AV)) (Max) | 35A |
|---|
| Current - On State (It (RMS)) (Max) | 55A |
|---|
| Current - Hold (Ih) (Max) | 150mA |
|---|
| Current - Off State (Max) | 500μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 600A @ 50Hz |
|---|
| SCR Type | Standard Recovery |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|

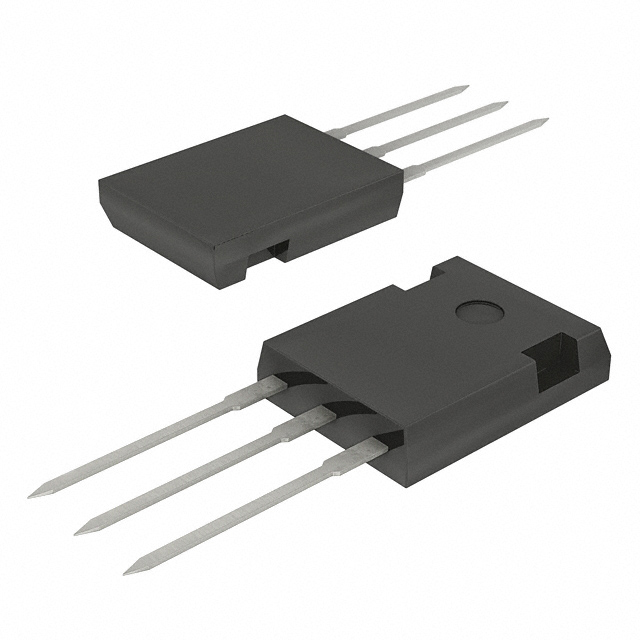

| Package / Case | TO-247-3 |
|---|
| Supplier Device Package | TO-247AC |
|---|
| Online Catalog | Silicon Controlled Rectifiers |
|---|
| Other Names | 40TPS12APBF40TPS12APBF-ND |
|---|
