| Part Number | 2N5061 |
|---|
| Manufacturer | Central Semiconductor Corp |
|---|
| Description | SCR 0.8A 60V TO-92 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Bulk |
|---|
| Voltage - Off State | 60V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
|---|
| Current - Gate Trigger (Igt) (Max) | 200μA |
|---|
| Voltage - On State (Vtm) (Max) | 1.7V |
|---|
| Current - On State (It (AV)) (Max) | - |
|---|
| Current - On State (It (RMS)) (Max) | 800mA |
|---|
| Current - Hold (Ih) (Max) | 5mA |
|---|
| Current - Off State (Max) | 1μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
|---|
| SCR Type | Sensitive Gate |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|

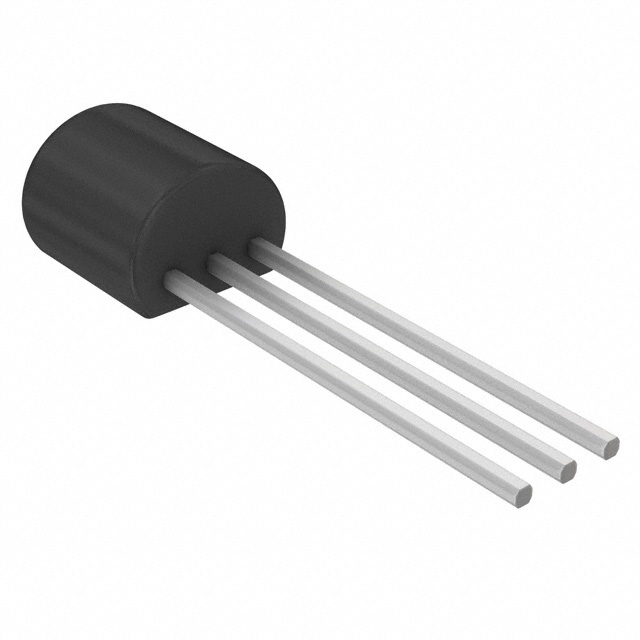

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
|---|
| Supplier Device Package | TO-92 |
|---|
| Online Catalog | Sensitive Gate SCRs |
|---|
| Other Names | 2N5061 LEAD FREE2N5061CS |
|---|
