| Part Number | P0102BL 5AA4 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | SCR 200V 0.25A SOT-23 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | SCRs - Single |
|---|
| Other Related Documents |
P010XX View All Specifications
|
|---|
| Product Training Modules |
AC Switches Family, Part One
AC Switches Family, Part Two
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Voltage - Off State | 200V |
|---|
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
|---|
| Current - Gate Trigger (Igt) (Max) | 200μA |
|---|
| Voltage - On State (Vtm) (Max) | 1.7V |
|---|
| Current - On State (It (AV)) (Max) | 500mA |
|---|
| Current - On State (It (RMS)) (Max) | 800mA |
|---|
| Current - Hold (Ih) (Max) | 5mA |
|---|
| Current - Off State (Max) | 1μA |
|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 7A, 8A |
|---|
| SCR Type | Sensitive Gate |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

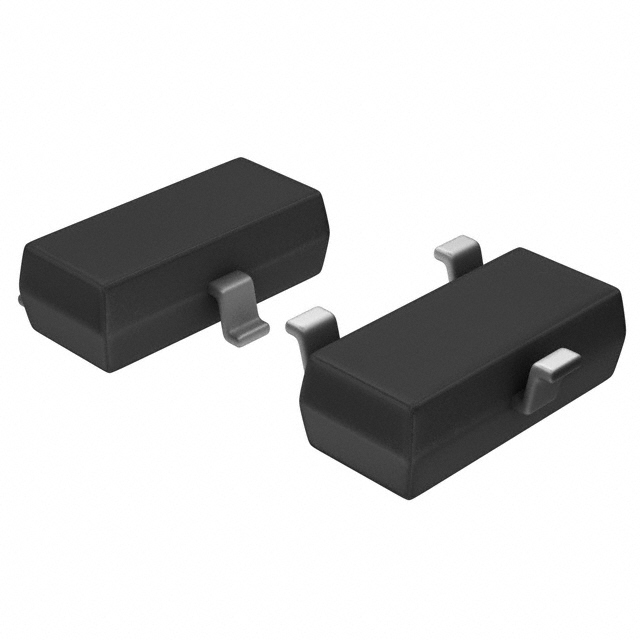

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
|---|
| Supplier Device Package | SOT-23-3 |
|---|
| Online Catalog | Sensitive Gate SCRs |
|---|
| Other Names | 497-2527-1 |
|---|
