| Part Number | BAP50-03,115 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | DIODE PIN GP 50V 50MA SOD-323 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | RF Diodes |
|---|
| Product Training Modules |
RF Small Signal Products Part 1
RF Small Signal Products Part 2
|
|---|
| PCN Design/Specification |
Resin Hardener 02/Jul/2013
|
|---|
| PCN Assembly/Origin |
PIN diode transfer 22/Jul/2013
Wafer Manufacturing Transfer 24/Dec/2013
|
|---|
| PCN Packaging |
Lighter Reels 02/Jan/2014
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Diode Type | PIN - Single |
|---|
| Voltage - Peak Reverse (Max) | 50V |
|---|
| Current - Max | 50mA |
|---|
| Capacitance @ Vr, F | 0.35pF @ 5V, 1MHz |
|---|
| Resistance @ If, F | 5 Ohm @ 10mA, 100MHz |
|---|
| Power Dissipation (Max) | 500mW |
|---|

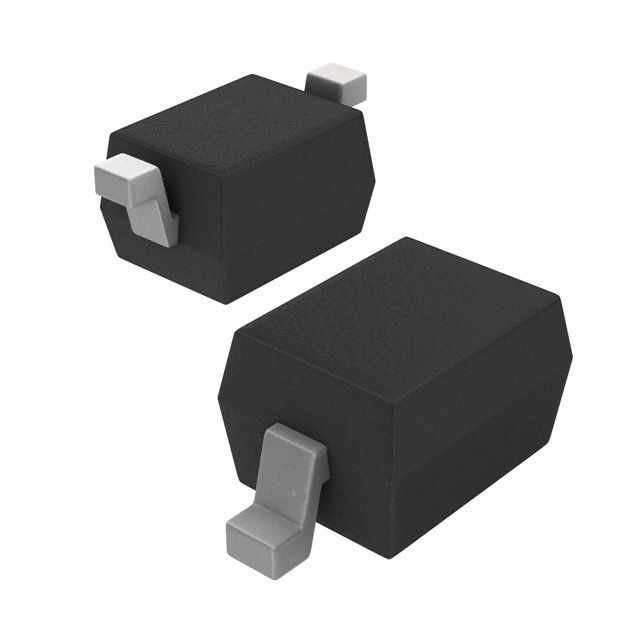

| Package / Case | SC-76, SOD-323 |
|---|
| Supplier Device Package | SOD-323 |
|---|
| Online Catalog | General Purpose PIN Diodes |
|---|
| Other Names | 568-1916-1 |
|---|
