| Part Number | IRG4PC40WPBF |
|---|
| Manufacturer | Infineon Technologies Americas Corp. |
|---|
| Description | IGBT 600V 40A 160W TO247AC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| Product Training Modules |
IGBT Primer Device and Applications
High Voltage Integrated Circuits (HVIC Gate Drivers)
|
|---|
| PCN Packaging |
Package Drawing Update 19/Aug/2015
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Bulk |
|---|
| IGBT Type | - |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 40A |
|---|
| Current - Collector Pulsed (Icm) | 160A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A |
|---|
| Power - Max | 160W |
|---|
| Switching Energy | 110μJ (on), 230μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 98nC |
|---|
| Td (on/off) @ 25°C | 27ns/100ns |
|---|
| Test Condition | 480V, 20A, 10 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | - |
|---|

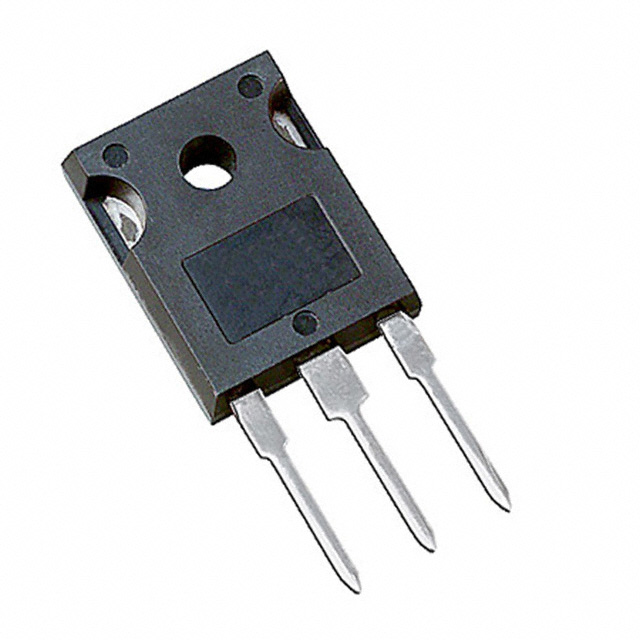

| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247AC |
|---|
| Online Catalog | Standard IGBTs |
|---|
| Other Names | *IRG4PC40WPBF |
|---|
