| Part Number | FGD4536TM |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | IGBT 360V 125W DPAK |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| PCN Assembly/Origin |
Wafer Fabrication 04/Feb/2013
|
|---|
| PCN Packaging |
Tape and Box/Reel Barcode Update 07/Aug/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| IGBT Type | Trench |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 360V |
|---|
| Current - Collector (Ic) (Max) | - |
|---|
| Current - Collector Pulsed (Icm) | 220A |
|---|
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 50A |
|---|
| Power - Max | 125W |
|---|
| Switching Energy | - |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 47nC |
|---|
| Td (on/off) @ 25°C | - |
|---|
| Test Condition | - |
|---|
| Reverse Recovery Time (trr) | - |
|---|

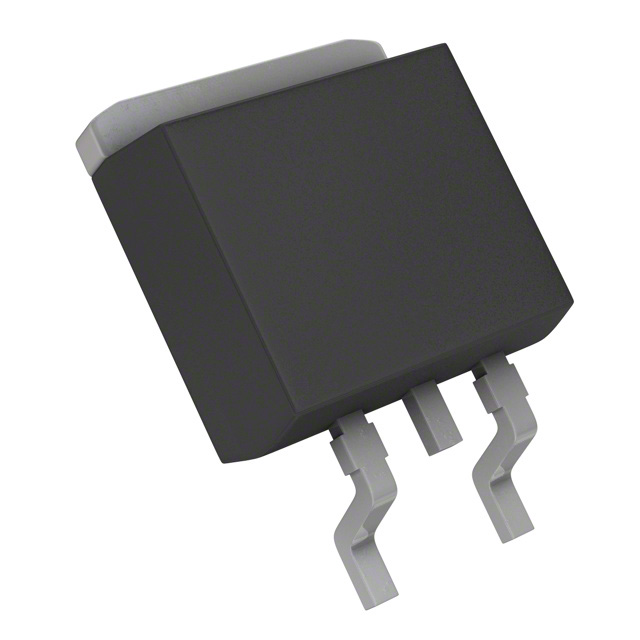

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | D-Pak |
|---|
| Other Names | FGD4536TMCT |
|---|
