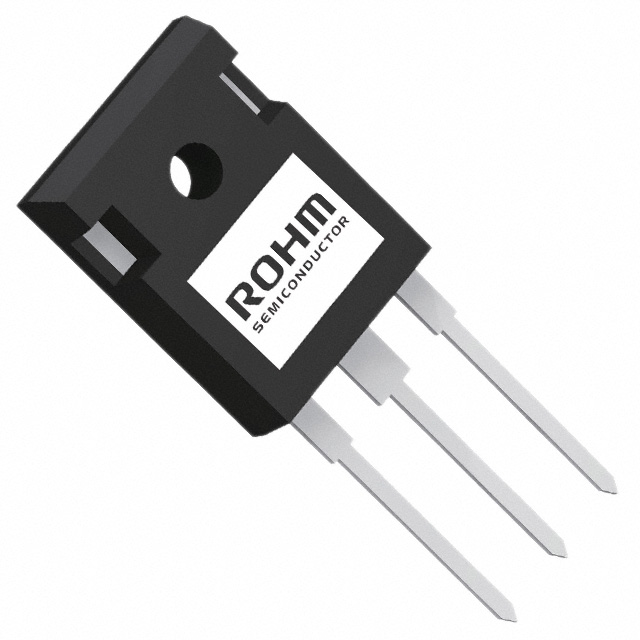

| Part Number | RGTH80TS65DGC11 |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | IGBT 650V 70A 234W TO-247N |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| Product Training Modules |
Insulated Gate Bipolar Transistors (IGBTs)
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| IGBT Type | Trench Field Stop |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 650V |
|---|
| Current - Collector (Ic) (Max) | 70A |
|---|
| Current - Collector Pulsed (Icm) | 160A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
|---|
| Power - Max | 234W |
|---|
| Switching Energy | - |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 79nC |
|---|
| Td (on/off) @ 25°C | 34ns/120ns |
|---|
| Test Condition | 400V, 40A, 10 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 58ns |
|---|
| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247N |
|---|
| Online Catalog | Standard IGBTs |
|---|
