| Part Number | STGW30H65FB |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IGBT 650V 30A 260W TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 507 |
| Datasheet | STGW30H65FB |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
STGW30H65FB
-
- USD 3.44
Product Details
| Part Number | STGW30H65FB |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IGBT 650V 30A 260W TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | - |
| Family | IGBTs - Single |
| Featured Product | 650 V IGBT HB Series |
| Standard Package | 30 |
| Packaging | Tube |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Current - Collector (Ic) (Max) | 30A |
| Current - Collector Pulsed (Icm) | 120A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Power - Max | 260W |
| Switching Energy | 151μJ (on), 293μJ (off) |
| Input Type | Standard |
| Gate Charge | 149nC |
| Td (on/off) @ 25°C | 37ns/146ns |
| Test Condition | 400V, 30A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | - |

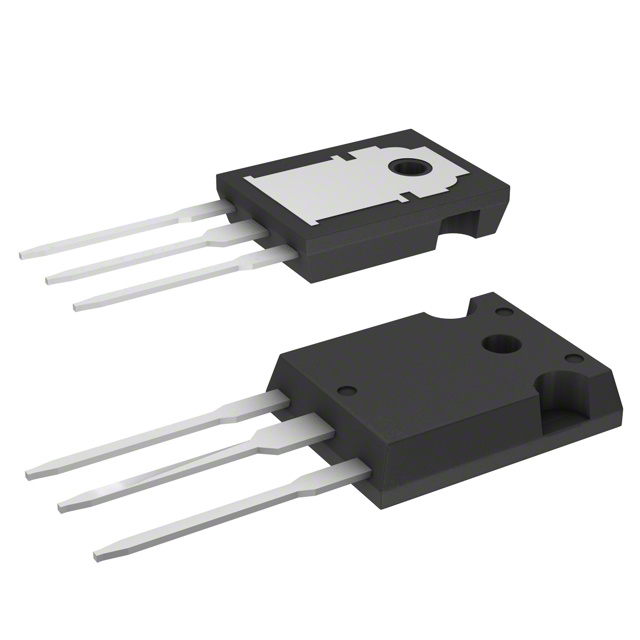

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Online Catalog | Standard IGBTs |
| Other Names | 497-14467-5 |
