| Part Number | STGP10NB60S |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | IGBT 600V 29A 80W TO220 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | PowerMESH? |
|---|
| Family | IGBTs - Single |
|---|
| Other Related Documents |
STGP10NB60S View All Specifications
|
|---|
| Featured Product |
Tail-Less 600 V IGBT V Series
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| IGBT Type | - |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 29A |
|---|
| Current - Collector Pulsed (Icm) | 80A |
|---|
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 10A |
|---|
| Power - Max | 80W |
|---|
| Switching Energy | 600μJ (on), 5mJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 33nC |
|---|
| Td (on/off) @ 25°C | 700ns/1.2μs |
|---|
| Test Condition | 480V, 10A, 1 kOhm, 15V |
|---|
| Reverse Recovery Time (trr) | - |
|---|

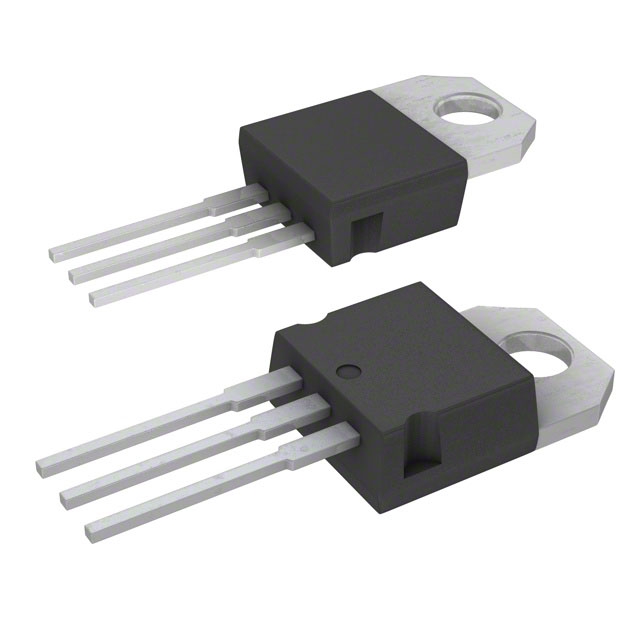

| Package / Case | TO-220-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-220AB |
|---|
| Online Catalog | Standard IGBTs |
|---|
| Other Names | 497-6733-5STGP10NB60S-ND |
|---|
