| Part Number | IRGPS40B120UDP |
|---|
| Manufacturer | Infineon Technologies Americas Corp. |
|---|
| Description | IGBT 1200V 80A 595W SUPER247 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| Product Training Modules |
IGBT Primer Device and Applications
High Voltage Integrated Circuits (HVIC Gate Drivers)
|
|---|
| Design Resources |
IRGPS40B120UDP Saber Model
IRGPS40B120UDP Spice Model
|
|---|
| PCN Packaging |
Package Drawing Update 19/Aug/2015
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Bulk |
|---|
| IGBT Type | NPT |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
|---|
| Current - Collector (Ic) (Max) | 80A |
|---|
| Current - Collector Pulsed (Icm) | 160A |
|---|
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A |
|---|
| Power - Max | 595W |
|---|
| Switching Energy | 1.4mJ (on), 1.65mJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 340nC |
|---|
| Td (on/off) @ 25°C | - |
|---|
| Test Condition | 600V, 40A, 4.7 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 180ns |
|---|

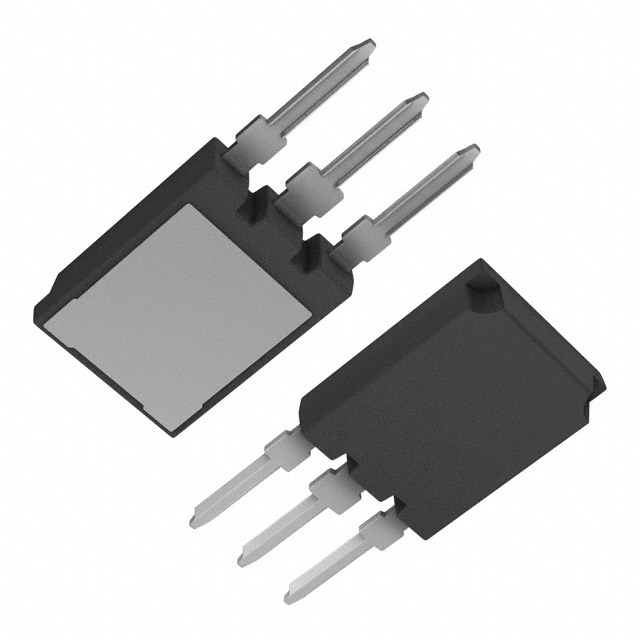

| Package / Case | TO-274AA |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | SUPER-247 (TO-274AA) |
|---|
| Other Names | *IRGPS40B120UDP |
|---|
